Turbocharger Bypass Valve Solenoid Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

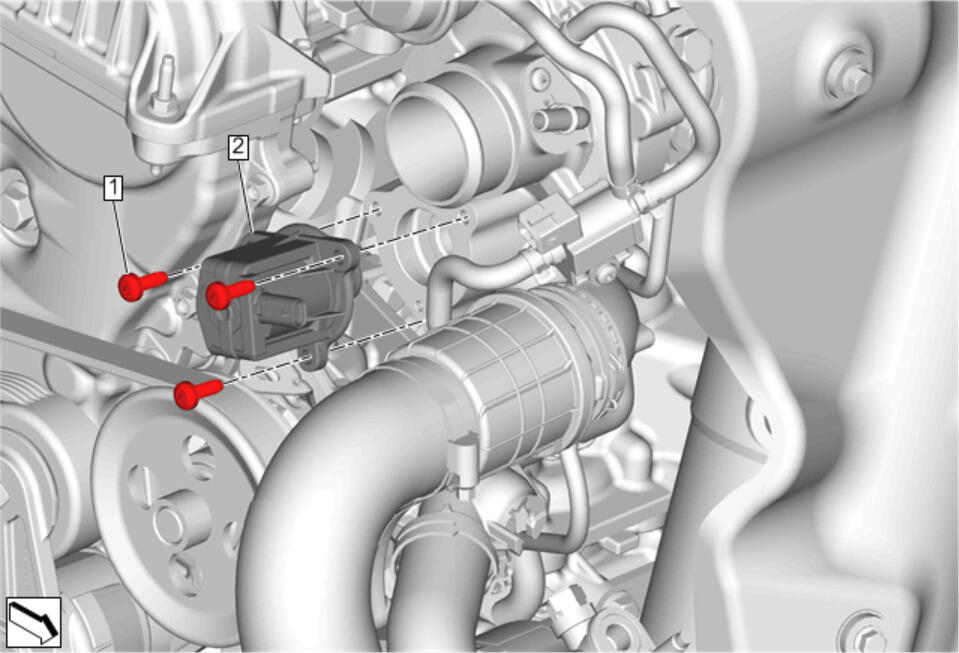

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Duct Replacement Disconnect the electrical connector.
1	Charge Air Bypass Valve Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Turbocharger Bypass Valve Solenoid Procedure Perform the intake system learned values reset. Intake System Learned Values Reset

Callout

Component Name

Preliminary Procedures

Air Cleaner Outlet Duct Replacement
Disconnect the electrical connector.

Charge Air Bypass Valve Bolt [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Turbocharger Bypass Valve Solenoid
Procedure
Perform the intake system learned values reset. Intake System Learned Values Reset
