Evaporative Emission Front Pipe Replacement (With Accumulator)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

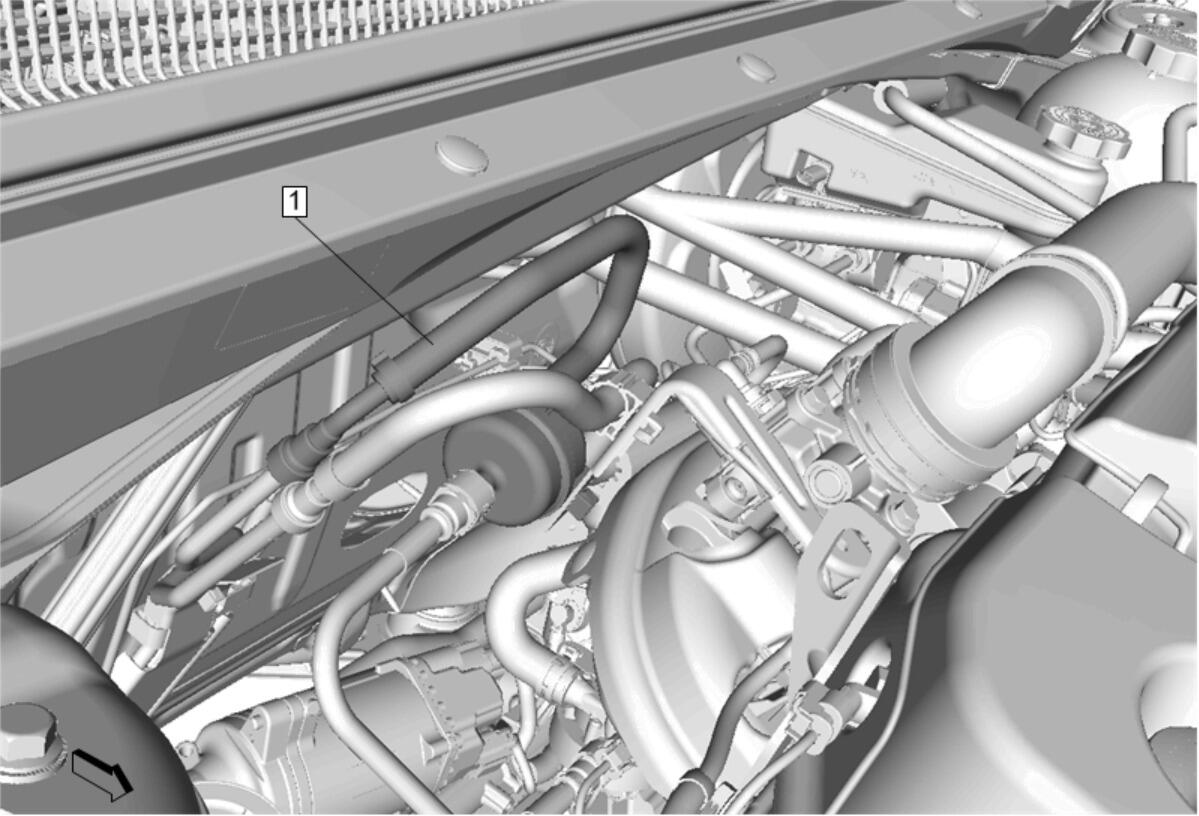

GM4790709Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Evaporative Emission Front PipeProcedure Disconnect the quick disconnects and remove from bracket. Plastic Collar Quick Connect Fitting Service , and Metal Collar Quick Connect Fitting Service
