Evaporative Emission Canister Purge Solenoid Valve Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

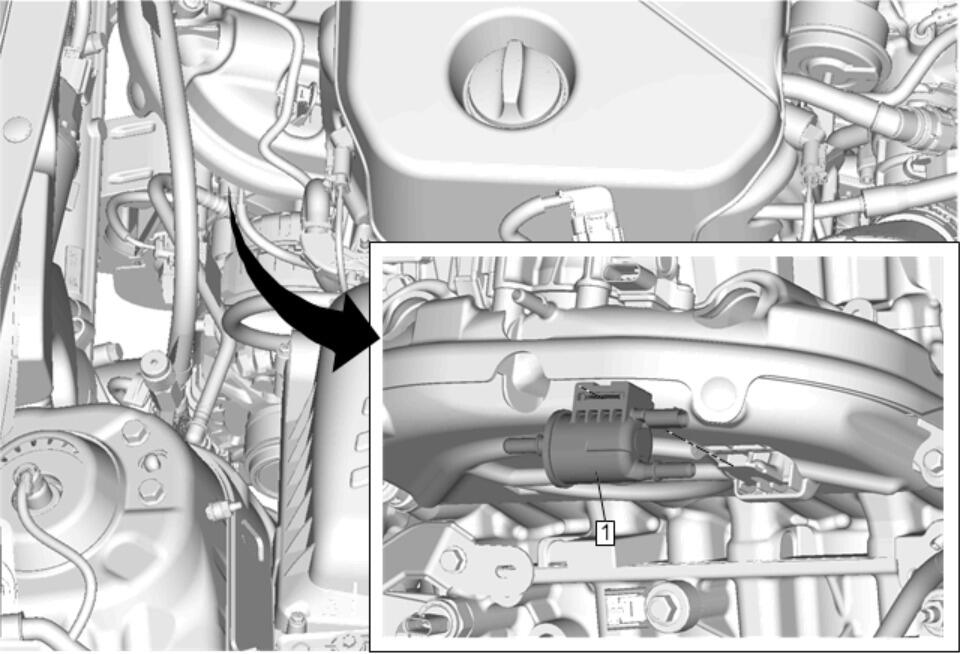

Callout	Component Name
Preliminary Procedures Evaporative Emission Canister Purge Tube @ Evaporative Emission Canister Purge Solenoid Valve - Disconnect [2x] - Evaporative Emission Canister Purge Tube Replacement (Intake Manifold to Purge Solenoid Valve) Disconnect the evaporative emission canister purge solenoid valve electrical connector.
1	Evaporative Emission Canister Purge Solenoid Valve

Callout

Component Name

Preliminary Procedures

Evaporative Emission Canister Purge Tube @ Evaporative Emission Canister Purge Solenoid Valve - Disconnect [2x] - Evaporative Emission Canister Purge Tube Replacement (Intake Manifold to Purge Solenoid Valve)
Disconnect the evaporative emission canister purge solenoid valve electrical connector.

Evaporative Emission Canister Purge Solenoid Valve
