Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

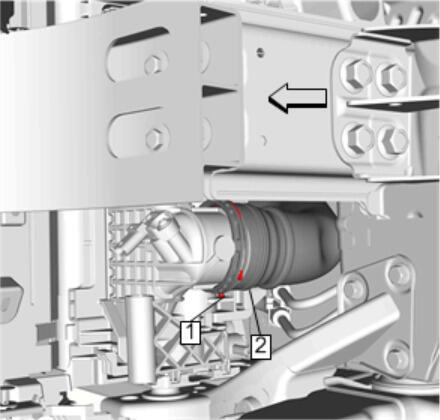

Charge Air Cooler Outlet Air Tube (2) - Install
- Retainer Spring (1) - Engage
- Position back and connect the turbocharger air pressure sensor harness retainers.

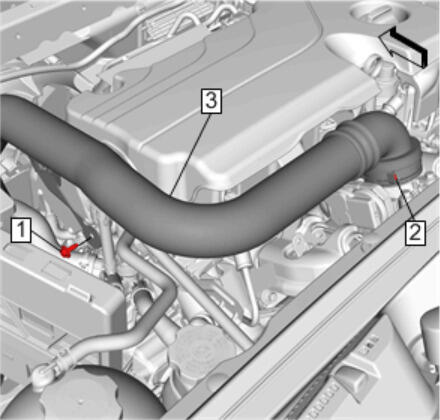

Charge Air Cooler Outlet Air Tube (3) - Install
- Retainer Spring (2) - Engage
- Charge Air Cooler Outlet Air Tube Fastener (1) - Install and tighten 9 N.m (80 lb in)
- Radiator Inlet Hose - Install - Radiator Inlet Hose Replacement (LFV)
- Front Bumper Fascia - Install - Front Bumper Fascia Replacement
CAUTION:
Refer to Fastener Caution .
