Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Bumper Fascia Replacement - Remove
  2. Air Cleaner Outlet Duct Replacement  - Remove
  3. GM4241988Courtesy of GENERAL MOTORS COMPANY

    Retainer Spring (1) - Release

  4. Charge Air Cooler Inlet Air Tube (2) - Remove

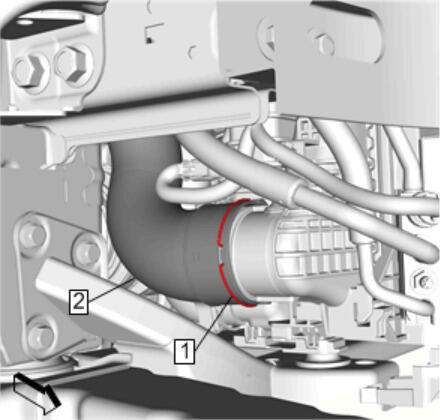

  5. GM4241959Courtesy of GENERAL MOTORS COMPANY

    Retainer Spring (1) - Release

  6. Charge Air Cooler Inlet Air Tube (2) - Remove
