Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

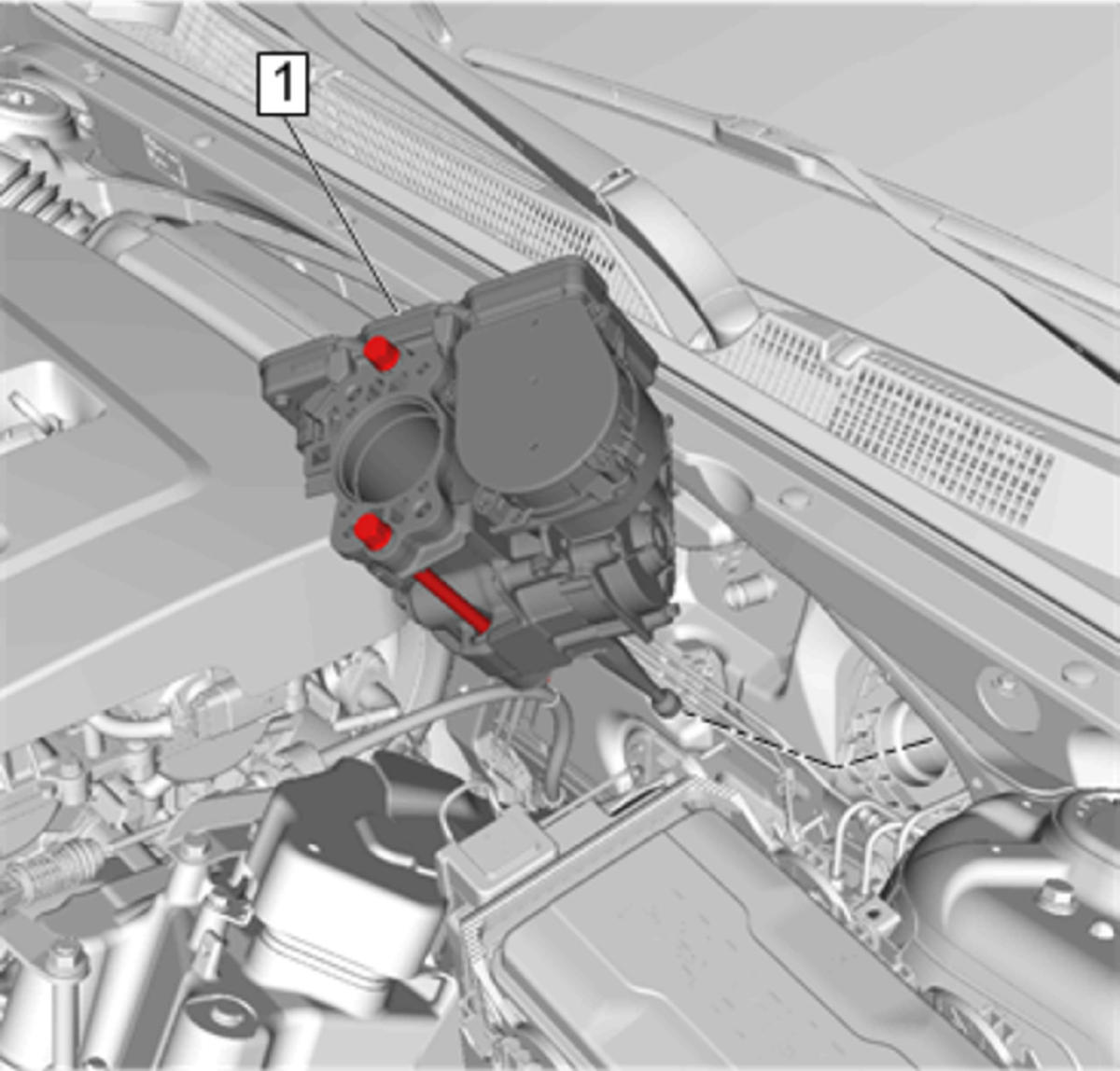

Power Brake Master Cylinder Booster (1) - Install
- CAUTION:

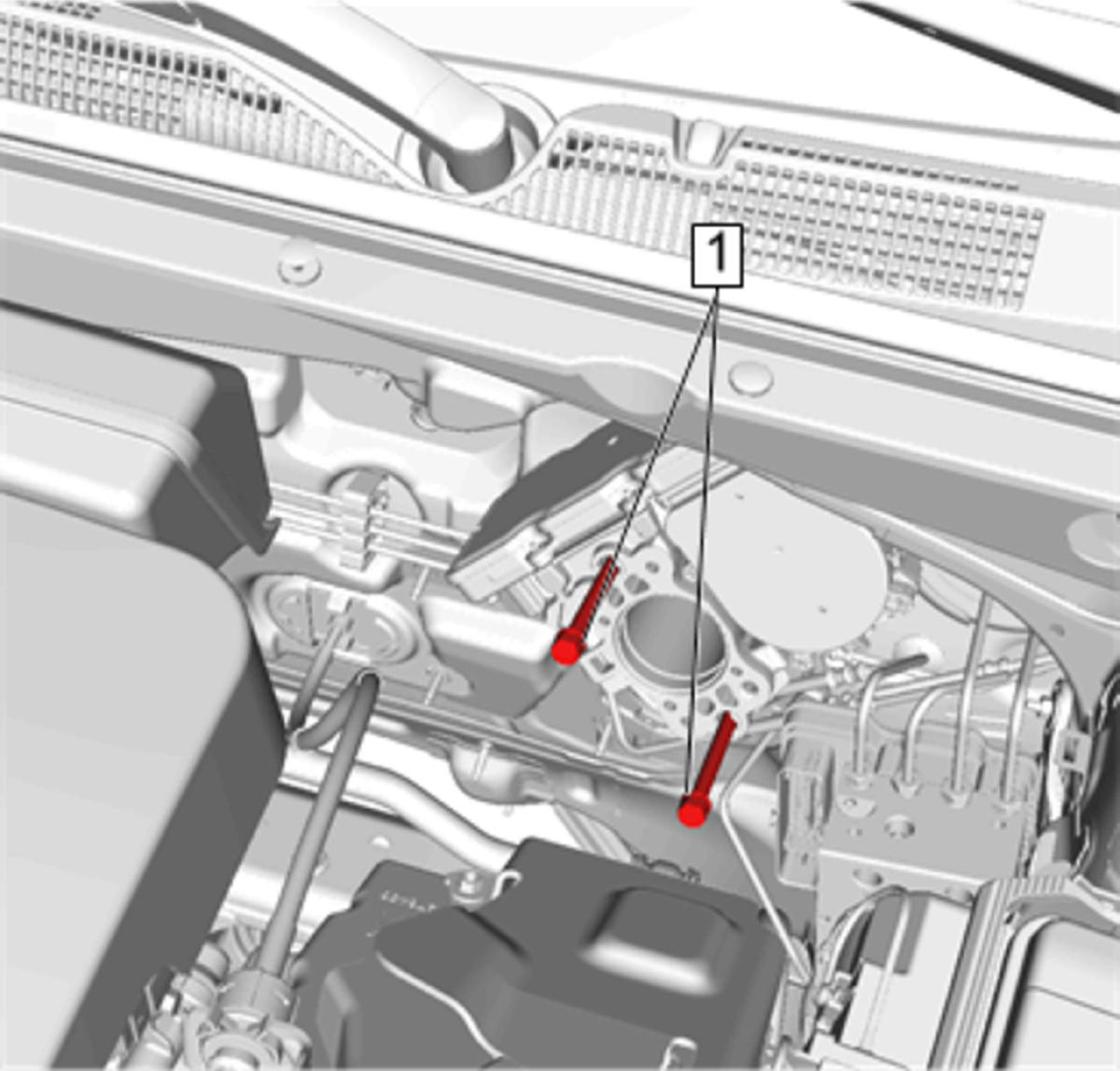

Power Brake Booster Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
- Connect the power brake master cylinder booster electrical connectors.
- Brake Master Cylinder - Install - Brake Master Cylinder Replacement (Without HP4) , or Brake Master Cylinder Replacement (With HP4)

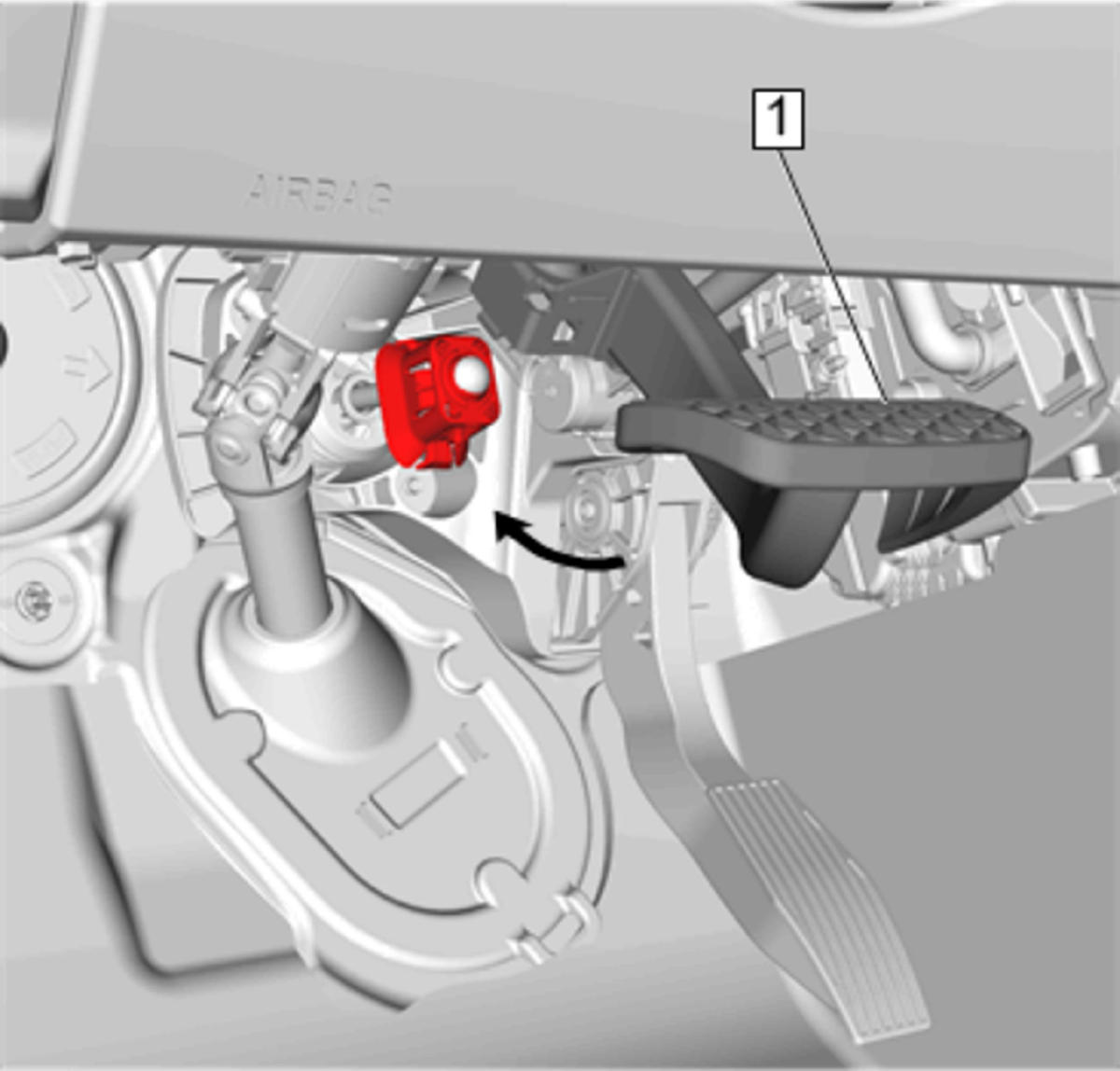

Retainer (1) - Install NEW
- NOTE:
Ensure the locking tabs on the brake pedal retainer are fully engaged in the brake pedal arm.
Brake Pedal (1) - Connect
- Brake Pedal Position Sensor - Install - Brake Pedal Position Sensor Replacement
- Install the electric brake booster fuse to the engine compartment fuse block.
- Bleed the hydraulic brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
- Program and calibrate the power brake booster control module. Control Module References
