Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

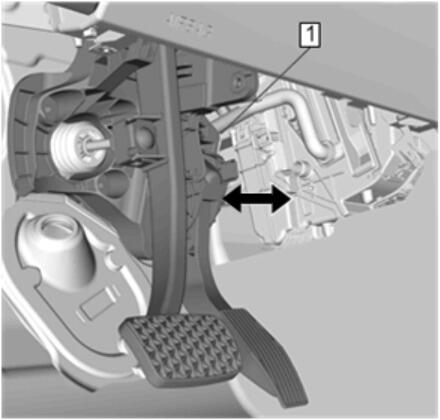

Brake Master Cylinder Adapter (1) - Remove - Brake Master Cylinder Adapter Replacement
- Front Floor Air Outlet Duct - Remove - Floor Front Air Outlet Duct Replacement - Left Side
- Accelerator Pedal Position SensorElectrical Connector - Disconnect
- Brake Pedal Position Sensor - Remove - Brake Pedal Position Sensor Replacement
Intermediate Steering Shaft (1) - Remove - Intermediate Steering Shaft Replacement
Brake and Accelerator Pedal Assembly Nut (1) - Remove
Brake and Accelerator Pedal Assembly Bolt (1) - Remove [2x]
Brake and Accelerator Pedal Assembly (1) - Remove
- Transfer components as necessary.
