Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Brake Fluid Irritant Warning

CAUTION:

Brake Fluid Effects on Paint and Electrical Components Caution

Brake Master Cylinder - Remove - Brake Master Cylinder Replacement (Without HP4) , or Brake Master Cylinder Replacement (With HP4)
Drain and properly dispose of the brake fluid in the master cylinder reservoir.
Courtesy of GENERAL MOTORS COMPANY

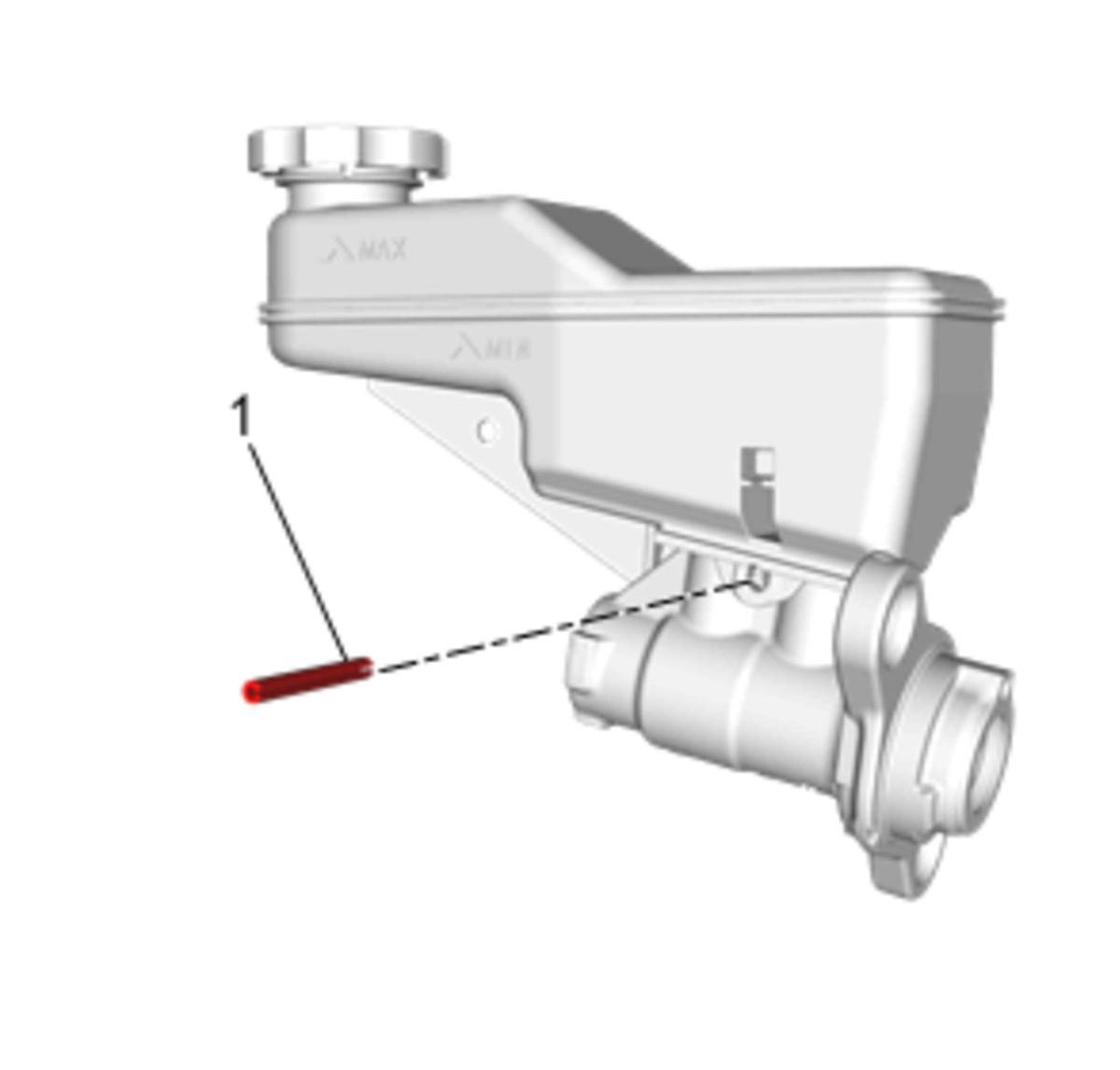

Brake Master Cylinder Reservoir Retaining Pin (1) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

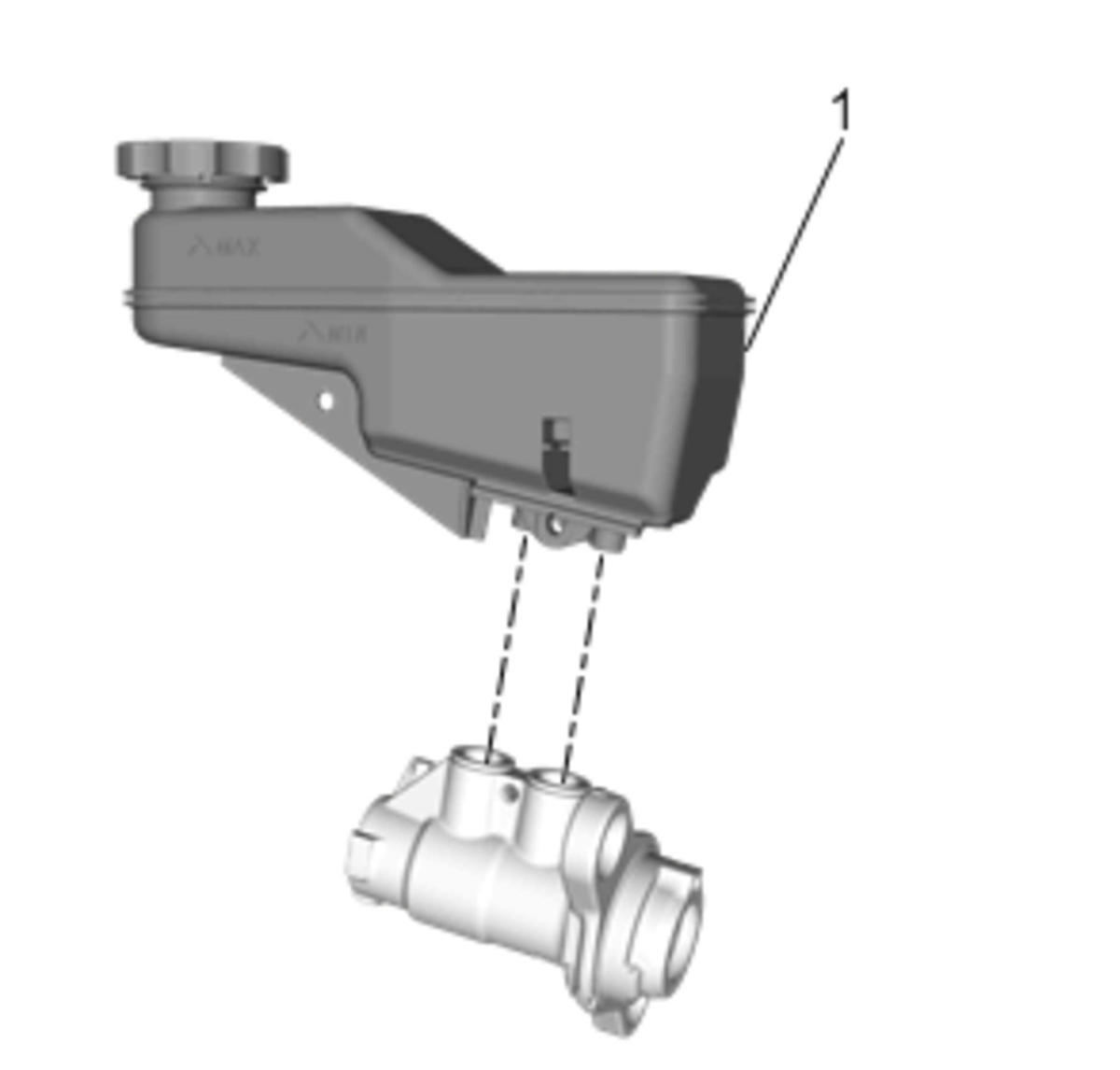

Master Cylinder Reservoir (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

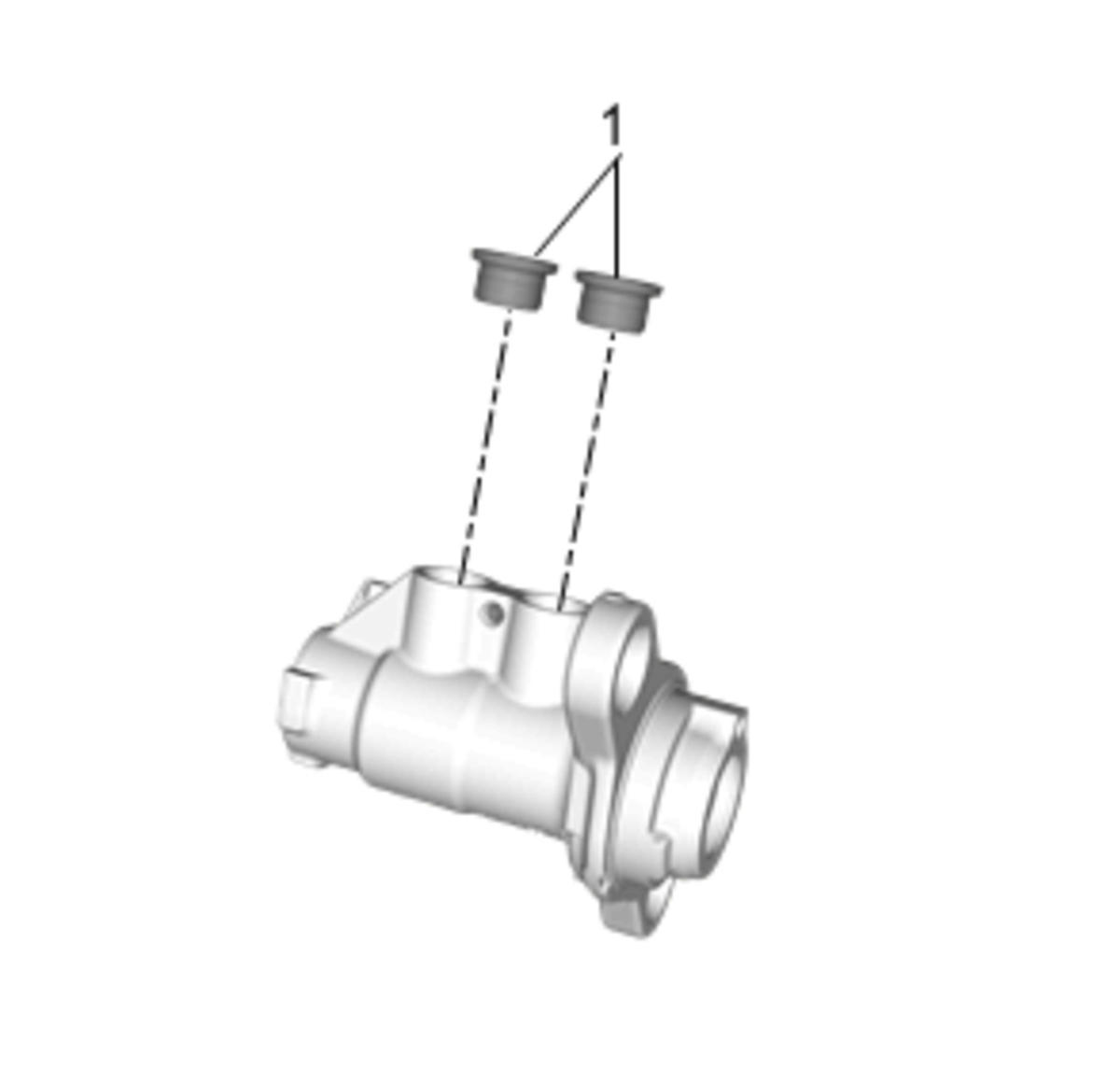

Brake Master Cylinder Reservoir Seal (1) - Remove and DISCARD [2x]
