Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

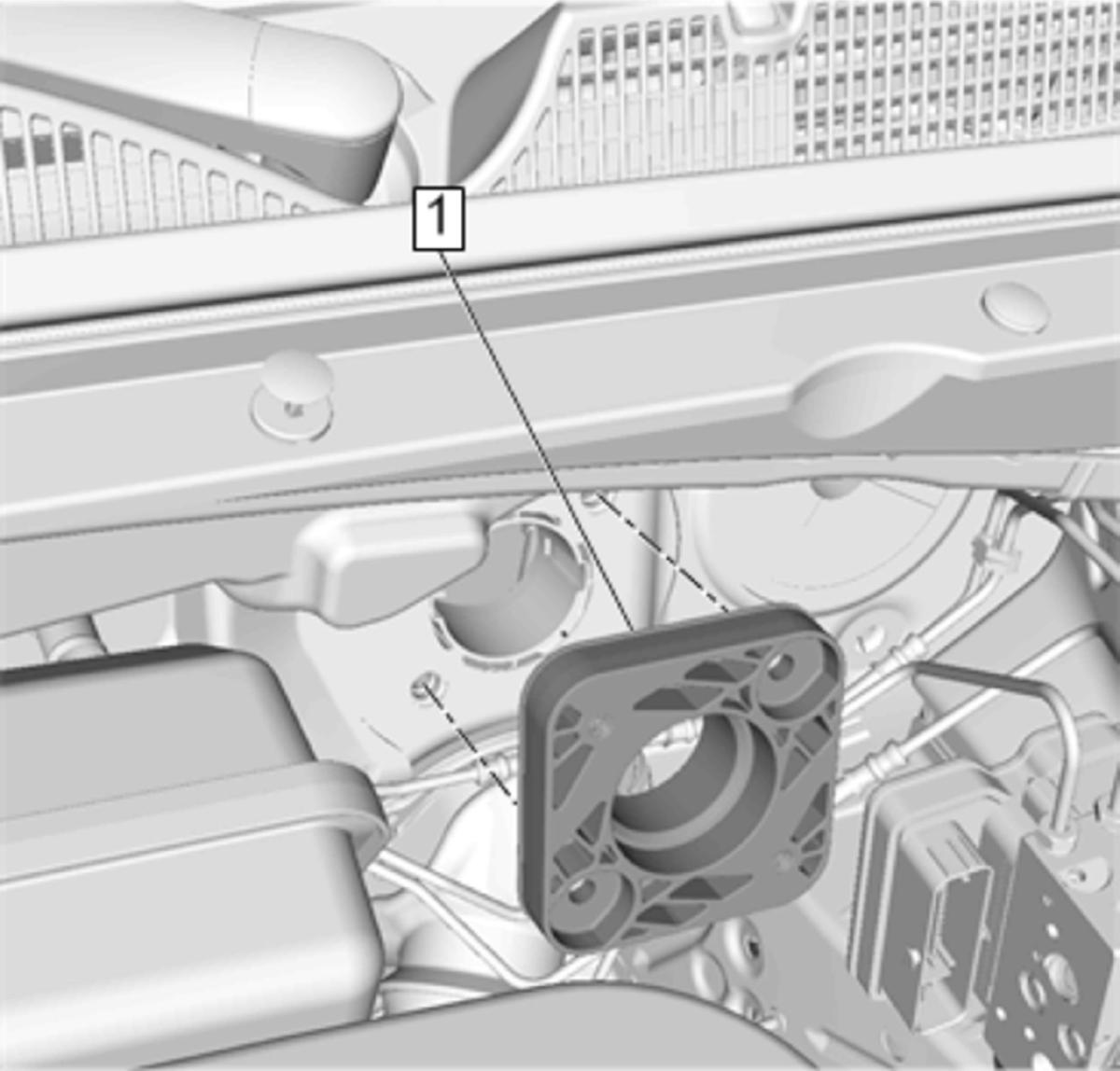

  1. GM4320533Courtesy of GENERAL MOTORS COMPANY

    Brake Master Cylinder Adapter (1) - Install

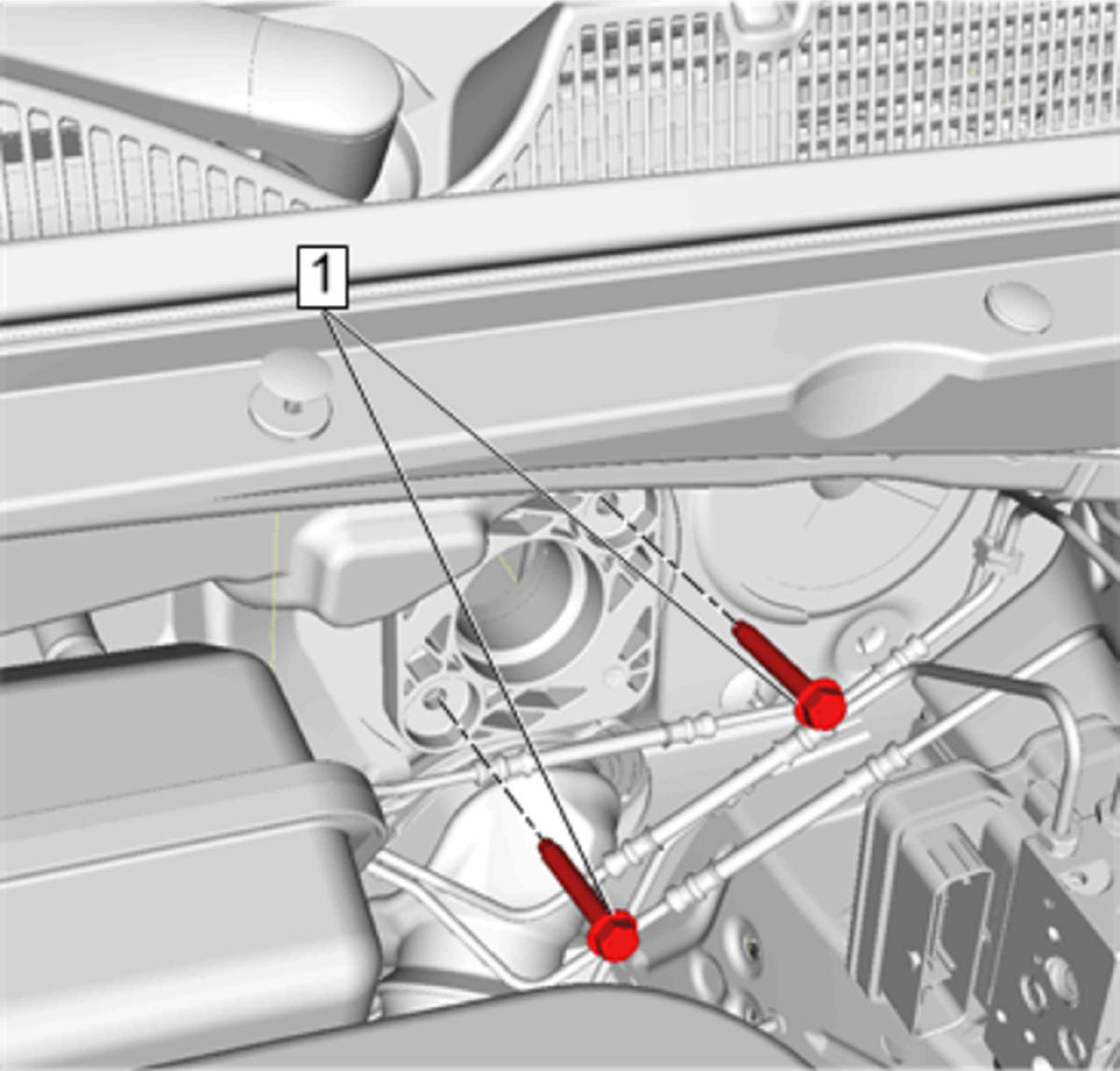

  2. GM4320527Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Brake Master Cylinder Bracket Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

  3. Power Brake Master Cylinder Booster - Install - Power Brake Master Cylinder Booster Assembly Replacement
