Brake Pedal Travel Measurement and Inspection
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
CH-28662 Brake Pedal Effort Gauge
Equivalent regional tools:Special Tools
- With the ignition OFF and the brakes cool, apply the brakes 3 - 5 times or until the brake pedal becomes firm.

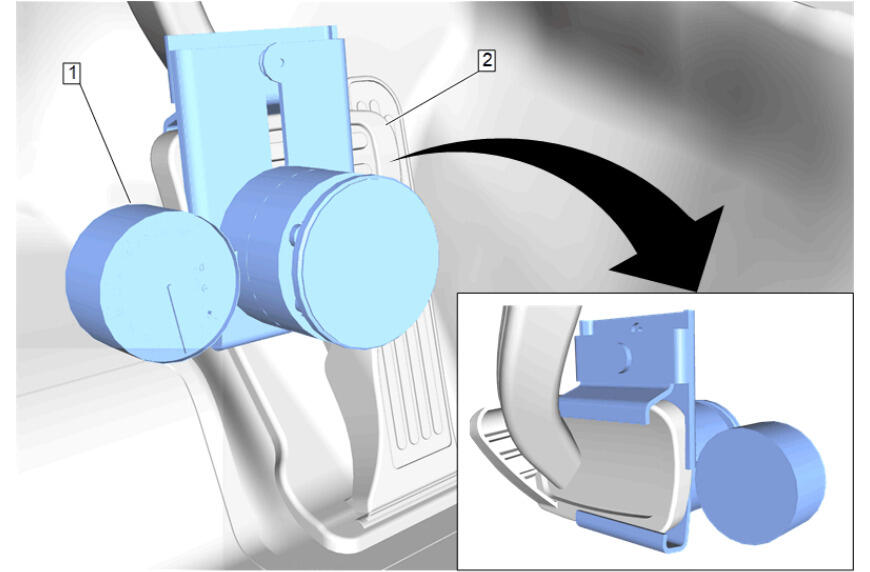

Install the CH-28662 Brake Pedal Effort Gauge (1) to the brake pedal (2).

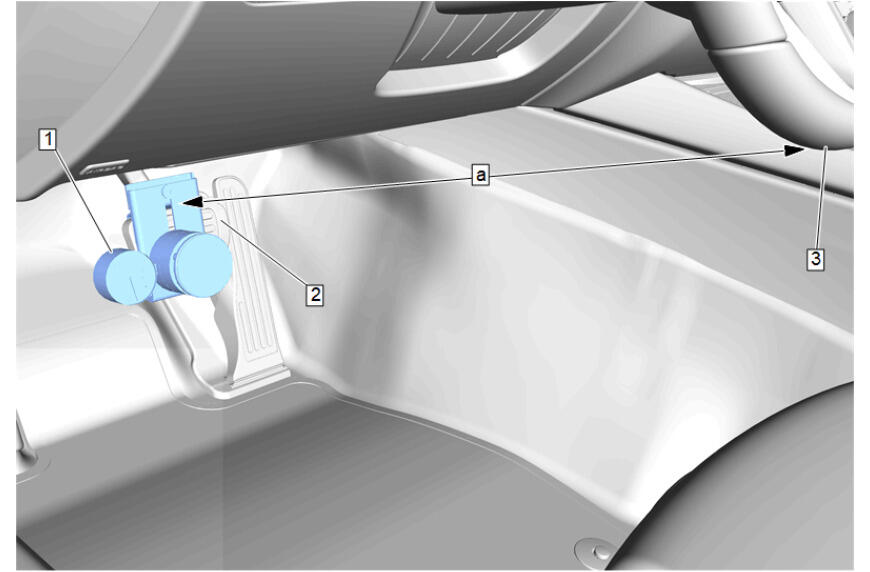

Measure and record the initial unapplied distance (a) from the brake pedal (2) to the rim of the steering wheel (3). Note the points of measurement.
Apply and maintain a force of 445 N (100 lb) to the brake pedal, as indicated on the CH-28662 gauge (1).

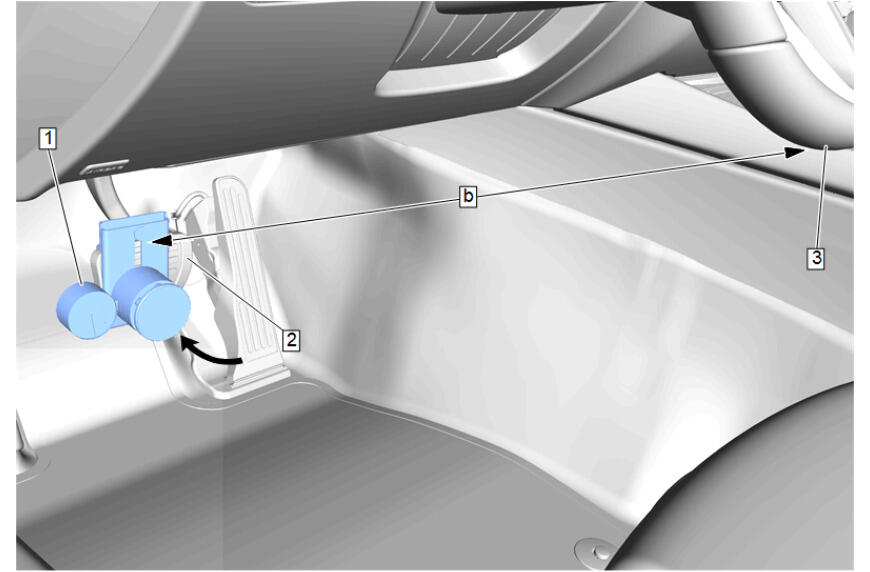

- While maintaining 445 N (100 lb) of force to the brake pedal (2), measure and record the distance (b) from the same point on the brake pedal (2) to the same point on the rim of the steering wheel (3).
- Release the brake pedal (2) and repeat steps 4 and 5 to obtain a second measurement. After obtaining a second measurement, proceed to step 7.
- Average the first and second measurements recorded for the 2 applies of the brakes.
- Subtract the initial unapplied distance (a), from the average applied distance (b) to obtain the brake pedal travel measurement.
- Compare the brake pedal travel measurement obtained with the specification. Brake System Specifications
