Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Intake Manifold Cover Replacement  - Remove
  2. Air Cleaner Assembly Replacement - Remove
  3. Engine Support Fixture  - Install
  4. GM4233006Courtesy of GENERAL MOTORS COMPANY

    Nut (1) - Remove

  5. Bolt (2) - Remove
  6. Engine Mount Brace (3) - Remove

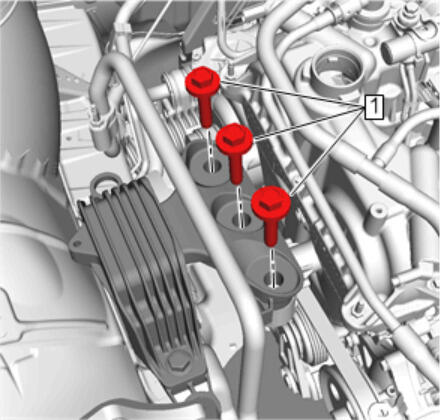

  7. GM4233007Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Bolt (1) - Remove and DISCARD [3x]

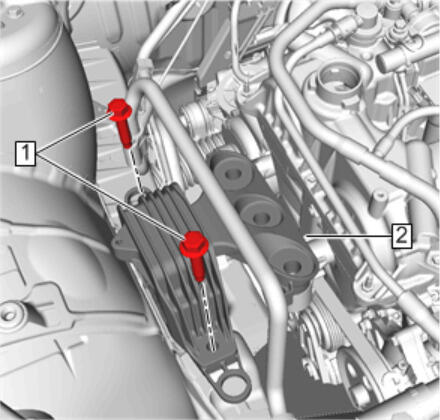

  8. GM4233010Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Bolt (1) - Remove and DISCARD [2x]

  9. Engine Mount (2) - Remove
