Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Intake Manifold Cover Replacement  - Remove
  2. Air Cleaner Assembly Replacement - Remove
  3. Engine Mount Replacement  - Remove

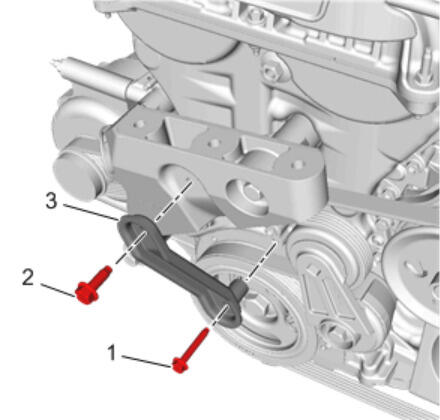

  4. GM4232132Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Brace Bolt (1) - Remove

  5. Engine Mount Brace Bolt (2) - Remove
  6. Engine Mount Bracket Reinforcement (3) - Remove

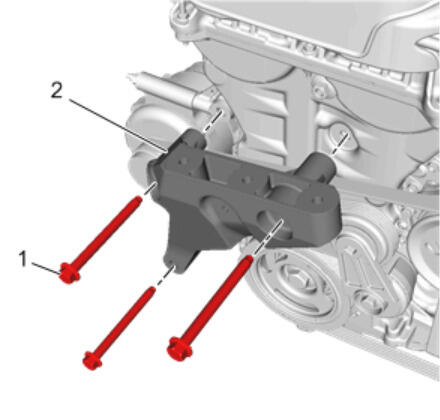

  7. GM4232135Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Bracket Bolt (1) - Remove and DISCARD [3x]

  8. Engine Mount Bracket (2) - Remove
