Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

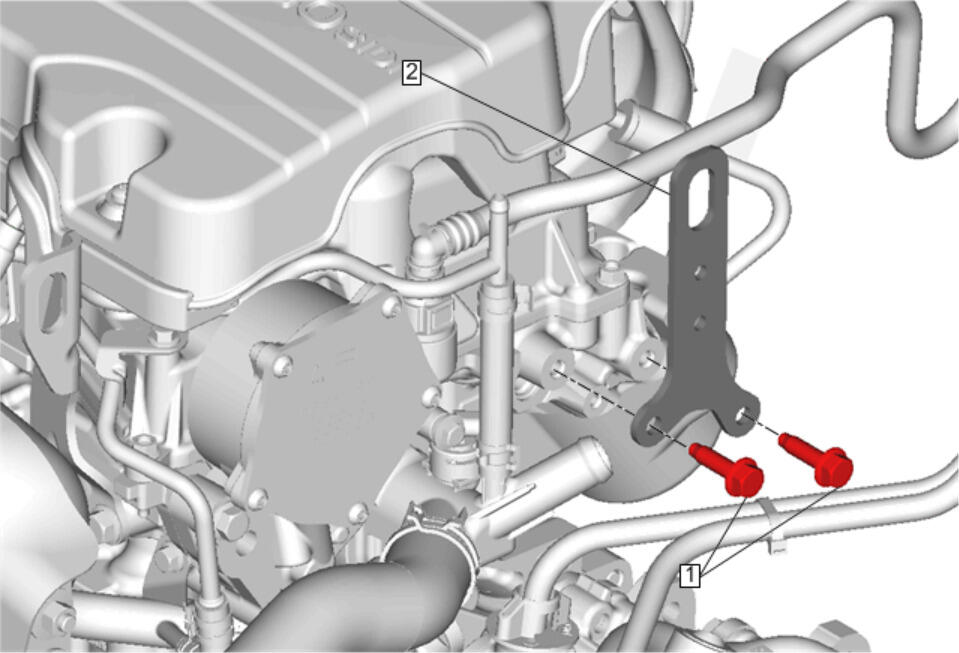

Position the engine lift bracket (2) then install the fasteners. Tighten to 25 N.m (18 lb ft).
Courtesy of GENERAL MOTORS COMPANY

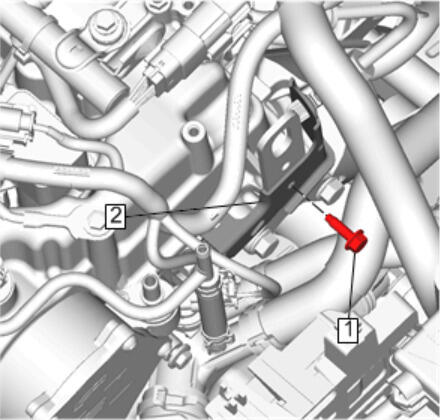

Position the engine wiring harness bracket (2) then install the fastener (1). Tighten to 10 N.m (89 lb in).
Charge Air Cooler Outlet Air Tube Replacement - Install
