Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

Install the timing chain oil nozzle (1). Tighten to 15 N.m (11 lb ft).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the actuator timing marks and the crankshaft sprocket keyway are at the 12 O'Clock position.

NOTE:
Ensure the correct timing link is aligned with the timing mark. The color of the actuator timing links are the same, and the color of the crankshaft sprocket timing link is unique.

Align the first timing chain link with the intake actuator timing marks (1).
1. Align the second timing chain link with the exhaust actuator timing marks (2).
2. Align the final timing chain link with the crankshaft sprocket timing mark (3).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not engage the timing chain tensioner until all guides have been installed.

CAUTION:
Refer to Fastener Caution .

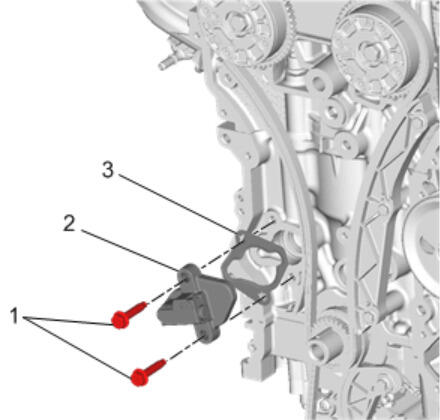

Position the timing chain tensioner (2) and gasket (3) then hand start the fasteners (1). Tighten to 25 N.m (18 lb ft).
Courtesy of GENERAL MOTORS COMPANY

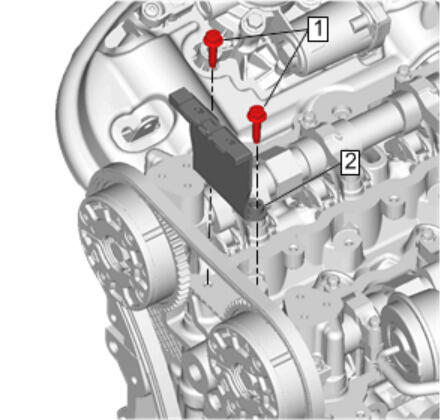

Position the timing chain guide (2) then hand start the fastener (1). Tighten to 10 N.m (89 lb in).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Position the timing chain guide (2) then hand start the fasteners (1). Tighten to 10 N.m (89 lb in).
Courtesy of GENERAL MOTORS COMPANY

Position the timing chain guide (2) then hand start the fasteners (1). Tighten to 10 N.m (89 lb in)
Engage the timing chain tensioner.
Courtesy of GENERAL MOTORS COMPANY

Inspect the timing chain marks to confirm they remained aligned after engaging the timing chain tensioner.
