Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

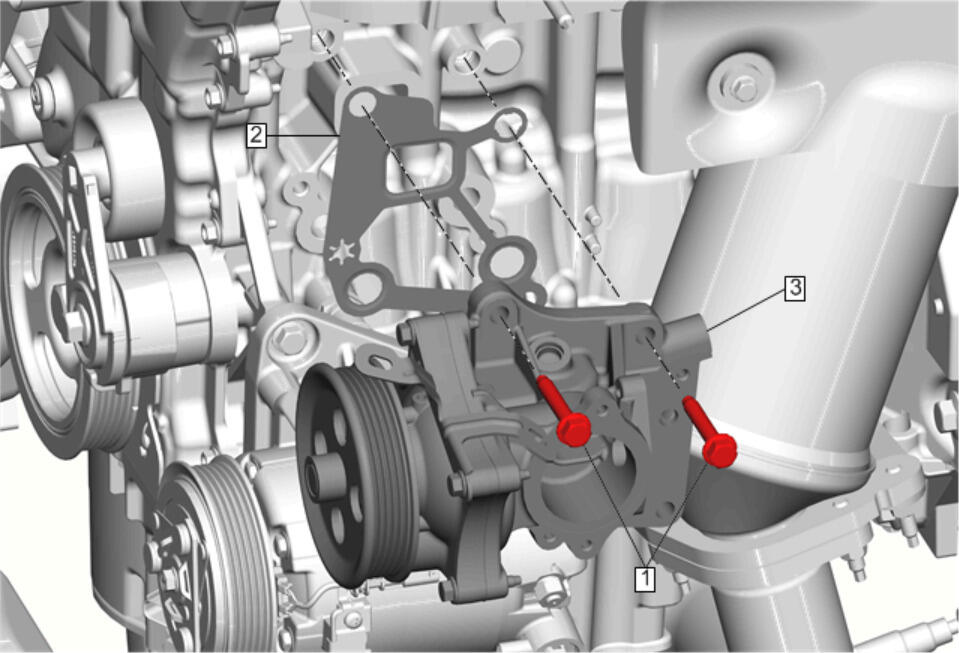

Water Pump Gasket (2) - Install a NEW gasket.
Water Pump (3) - Install

CAUTION:

Refer to Fastener Caution .

Water Pump Bolt (1) - Install and tighten [2x] 25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

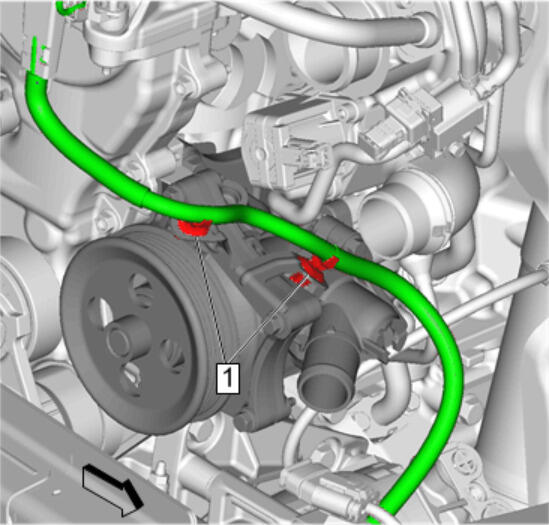

Engine Wiring Harness Retainer (1) @ Engine Wiring Harness Bracket - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Coolant Feed Pipe (3) - Install - Turbocharger Coolant Feed Pipe Replacement (LFV)
Courtesy of GENERAL MOTORS COMPANY

Thermostat Bypass Pipe (3) @ Water Pump - Connect - Thermostat Bypass Pipe Replacement (LFV)
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Oil Feed Pipe (2) - Install - Turbocharger Oil Feed Pipe Replacement
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Thermostat Housing (3) - Install - Engine Coolant Thermostat Housing Replacement (LFV)
Courtesy of GENERAL MOTORS COMPANY

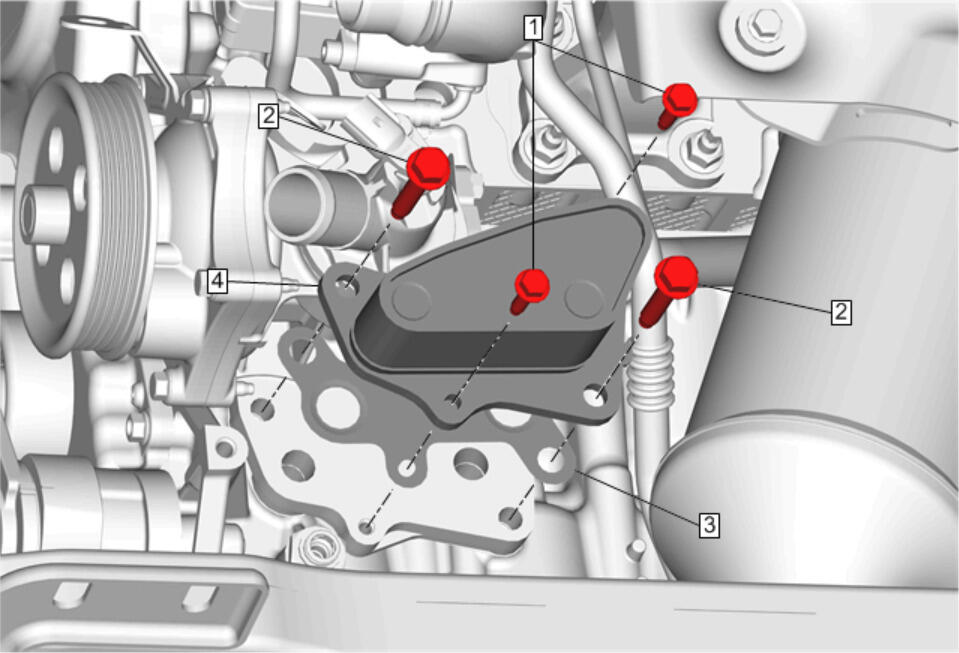

Engine Oil Cooler (4) - Install -

Engine Oil Cooler Replacement (LFV)
Courtesy of GENERAL MOTORS COMPANY

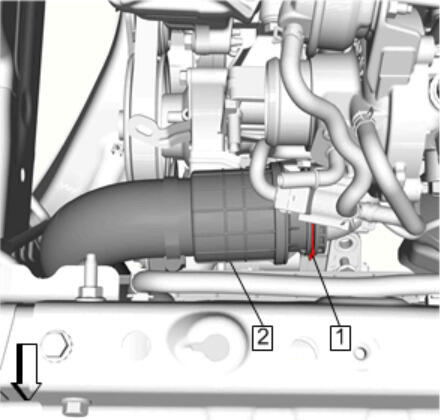

Charge Air Cooler Inlet Air Tube (2) - Install - Charge Air Cooler Inlet Air Tube Replacement
Fill the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Start the engine and check for leaks.
