Water Pump Inlet Pipe Replacement (LKN)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

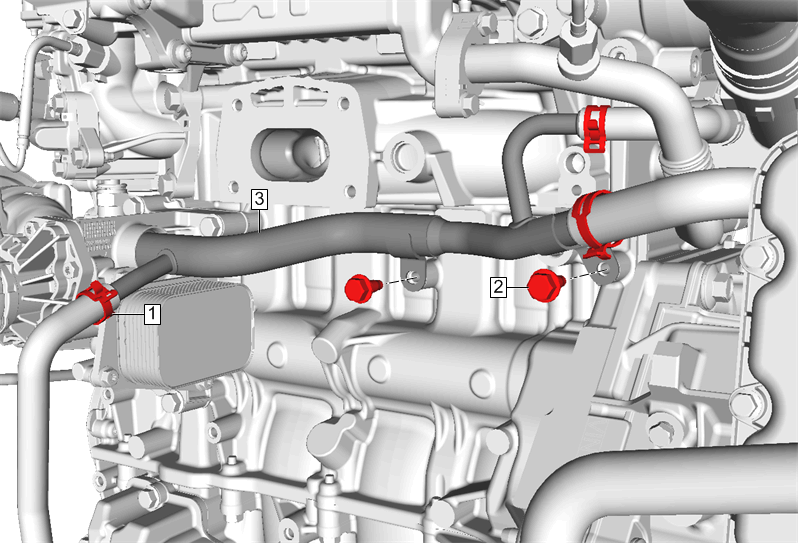

| Callout | Component Name |
|---|---|
| Preliminary Procedure Warm Up Three-Way Catalytic Converter Replacement (LKN) |
|
| 1 | Engine Coolant Hose Clamp [3x] Hose Clamp Replacement Guidelines - Spring Type |
| 2 | Water Pump Inlet Pipe Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 3 | Water Pump Inlet Pipe Procedure Install a NEW water pump inlet pipe seal. |
