Removal Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
- Air Cleaner Assembly - Remove - Air Cleaner Assembly Replacement

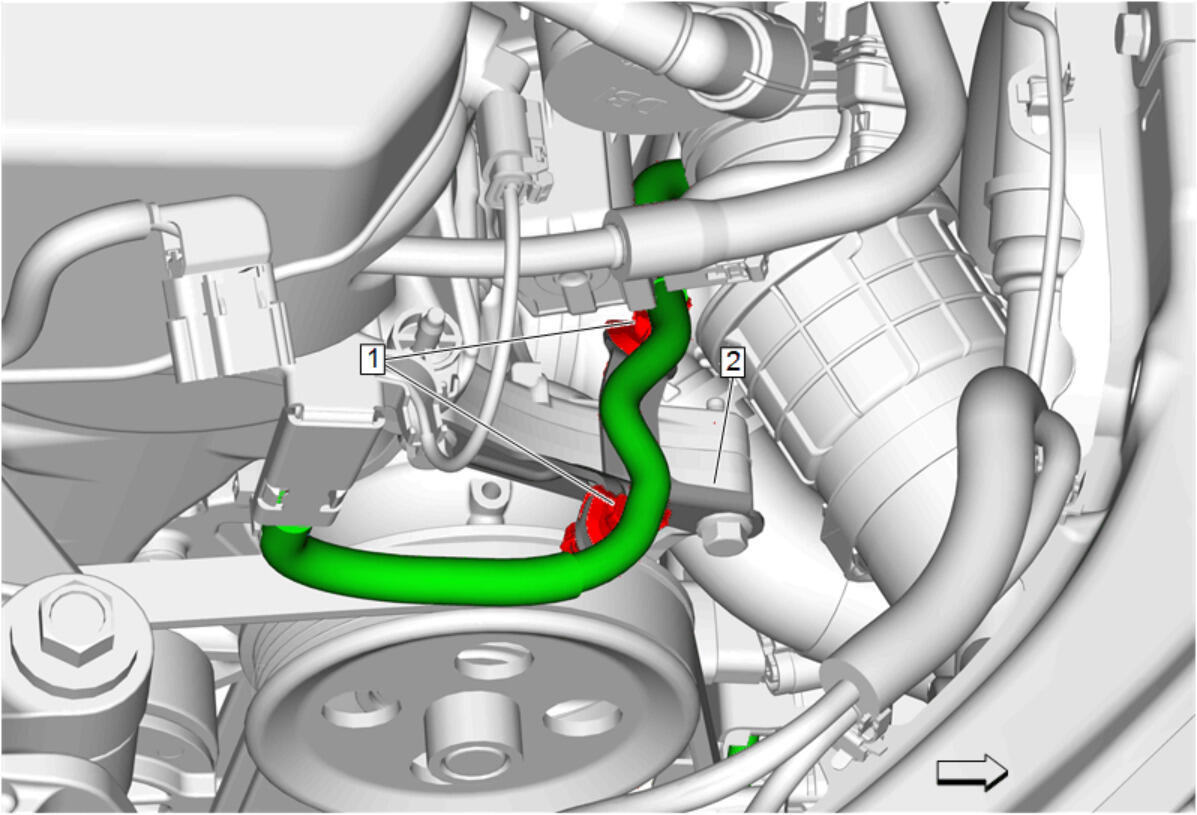

Engine Wiring Harness Retainer (1) @ Engine Wiring Harness Bracket (2) - Separate [2x]
Drive Belt Tensioner (2) - Remove - Drive Belt Tensioner Replacement

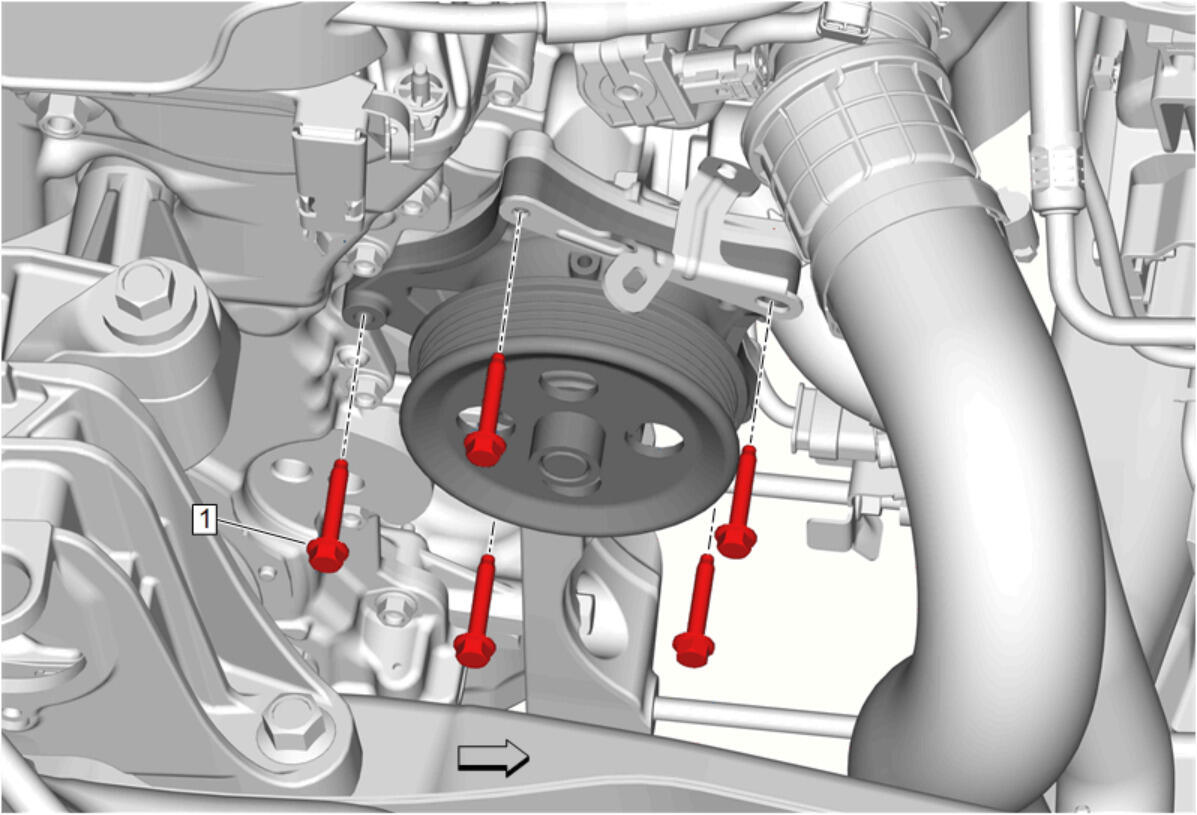

Water Pump Bolt (1) - Remove [5x]

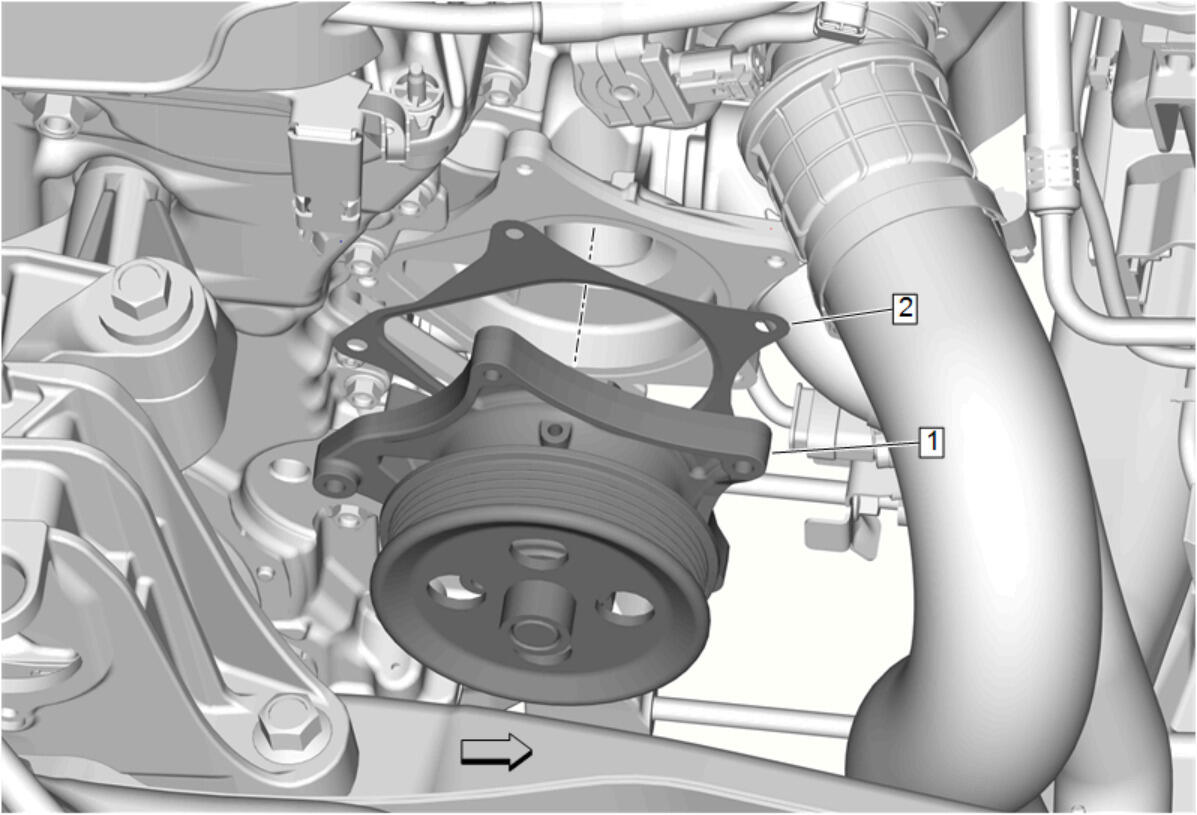

Water Pump Housing (1) - Remove
- Water Pump Housing Gasket (2) - Remove and DISCARD
