Thermostat Bypass Hose Replacement (LKN)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

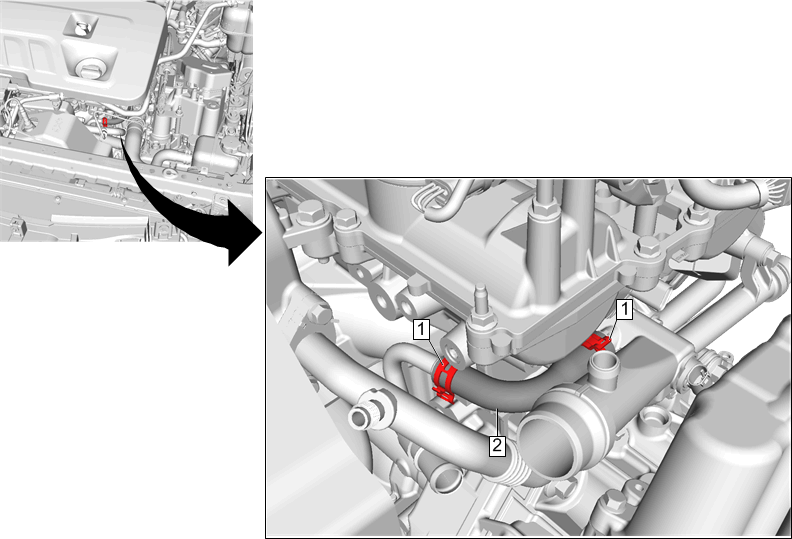

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Radiator Inlet Hose @ Water Outlet - Disconnect and position aside - Radiator Inlet Hose Replacement (LKN)
1	Thermostat Bypass Hose Clamp [2x] NOTE: Using a pair of long needle nose pliers will aid in removing the inner hose clamp. Hose Clamp Replacement Guidelines - Spring Type
2	Thermostat Bypass Hose

Callout

Component Name

Preliminary Procedures

Intake Manifold Cover Replacement
Radiator Inlet Hose @ Water Outlet - Disconnect and position aside - Radiator Inlet Hose Replacement (LKN)

Thermostat Bypass Hose Clamp [2x]

NOTE:

Using a pair of long needle nose pliers will aid in removing the inner hose clamp.

Hose Clamp Replacement Guidelines - Spring Type

Thermostat Bypass Hose
