Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

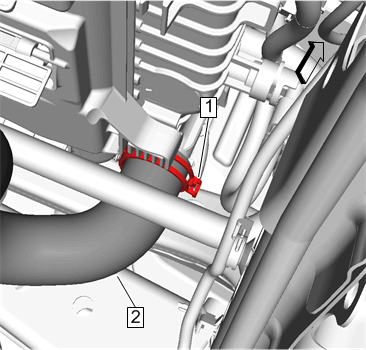

Radiator Outlet Hose (2) @ Engine Coolant Thermostat Housing - Install
- Radiator Inlet Hose Retainer (2) - Engage
Radiator Outlet Hose (2) @ Radiator - Install
- Radiator Outlet Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Fill the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
- Start the engine and check for coolant leaks.
