Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
Refer to Fastener Caution .
{ If equipped } Radiator Air Lower Deflector (2) @ Front Bumper Shutter (3) - Install
- { If equipped } Front Bumper Shutter Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)
{ If equipped } Radiator Air Seal (1) - Install

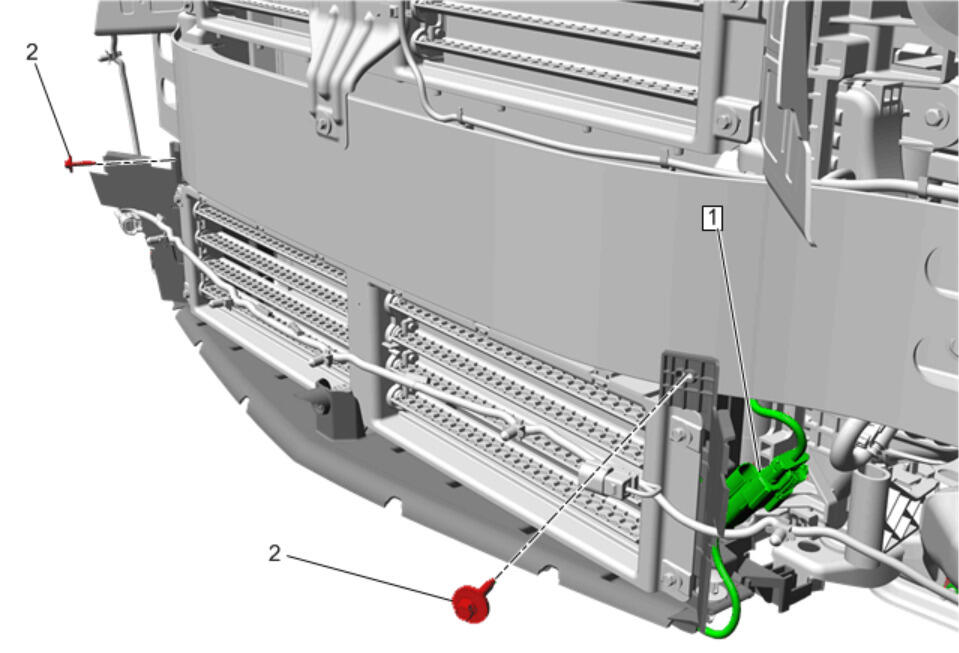

Radiator Air Lower Deflector (1) - Install
Radiator Air Lower Deflector Bolt (2) - Install and tighten [2x] 2.5 N.m (22 lb in)
- Connect the electrical connector. (1)
- Front Bumper Fascia - Install - Front Bumper Fascia Replacement
