Engine Oil Cooler Replacement (LKN)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

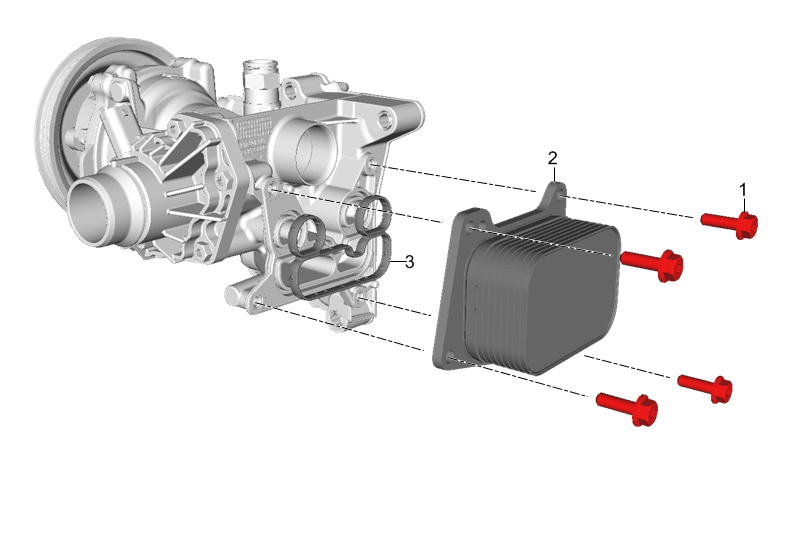

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine oil cooler housing. Engine Oil Cooler Replacement (with Housing, LKN) , or Engine Oil Cooler Replacement (LKN) |
|
| 1 | Engine Oil Cooler Bolt [4x]
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Engine Oil Cooler |
| 3 | Engine Oil Cooler Seal Procedure Install a NEW engine oil cooler seal. |
