Engine Coolant Temperature Sensor Replacement - Radiator (LKN)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

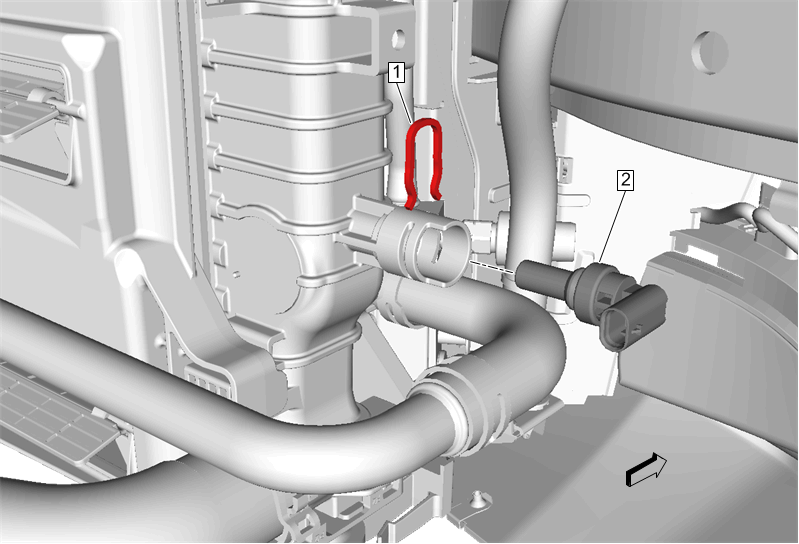

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static) Front Wheelhouse Liner Replacement - Right Side (LKN) Disconnect the electrical connector.
1	Engine Coolant Temperature Sensor Retainer
2	Engine Coolant Temperature Sensor Procedure Fill the coolant to the proper level. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static) Inspect for coolant leaks.

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Front Wheelhouse Liner Replacement - Right Side (LKN)
Disconnect the electrical connector.

Engine Coolant Temperature Sensor Retainer

Engine Coolant Temperature Sensor

Procedure

Fill the coolant to the proper level. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Inspect for coolant leaks.
