Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Drive Motor Generator Battery Bracket - Remove - Drive Motor Generator Battery Bracket Replacement (Drive Motor Generator Battery Cooling Blower) , or Drive Motor Generator Battery Bracket Replacement (Drive Motor Battery Radiator Surge Tank)
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (4) - Remove - Front Bumper Fascia Replacement
Disconnect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

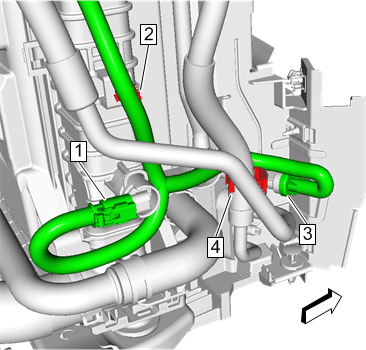

Electrical Connector @ Engine Coolant Temperature Sensor (1) - Disconnect
Electrical Connector @ Air Conditioning Refrigerant Pressure Sensor (3) - Disconnect
Wiring Harness Clip (4) @ Air Conditioning Evaporator Tube - Unclip
Wiring Harness Retainer (2) @ Radiator - Unclip
Courtesy of GENERAL MOTORS COMPANY

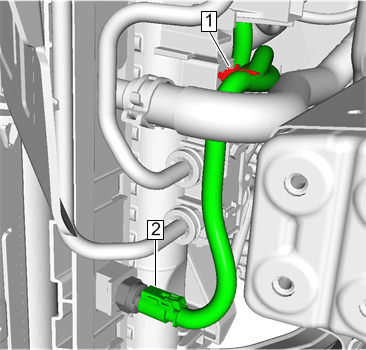

Wiring Harness Retainer (1) @ Radiator - Unclip
Electrical Connector @ Engine Coolant Temperature Sensor (2) @ Auxiliary Radiator - Disconnect
Courtesy of GENERAL MOTORS COMPANY

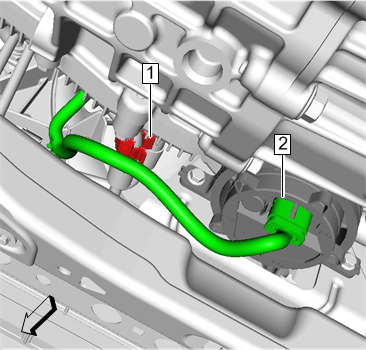

Electrical Connector (2) @ Generator Control Module Coolant Pump - Disconnect
Wiring Harness Clip (1) @ Transmission Fluid Cooler Inlet PipeUnclip
Courtesy of GENERAL MOTORS COMPANY

Disconnect the engine cooling fan wiring harness connectors (1) from the engine wiring harness.
Ground Nut (2) - Remove
Remove the ground terminal (3) from the ground stud.
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Wiring Harness (2) @ Engine Coolant Fan (1) - Unclip
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Electrical Connector (1) @ Engine Coolant Fan - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Wiring Harness (1) - Remove
