Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

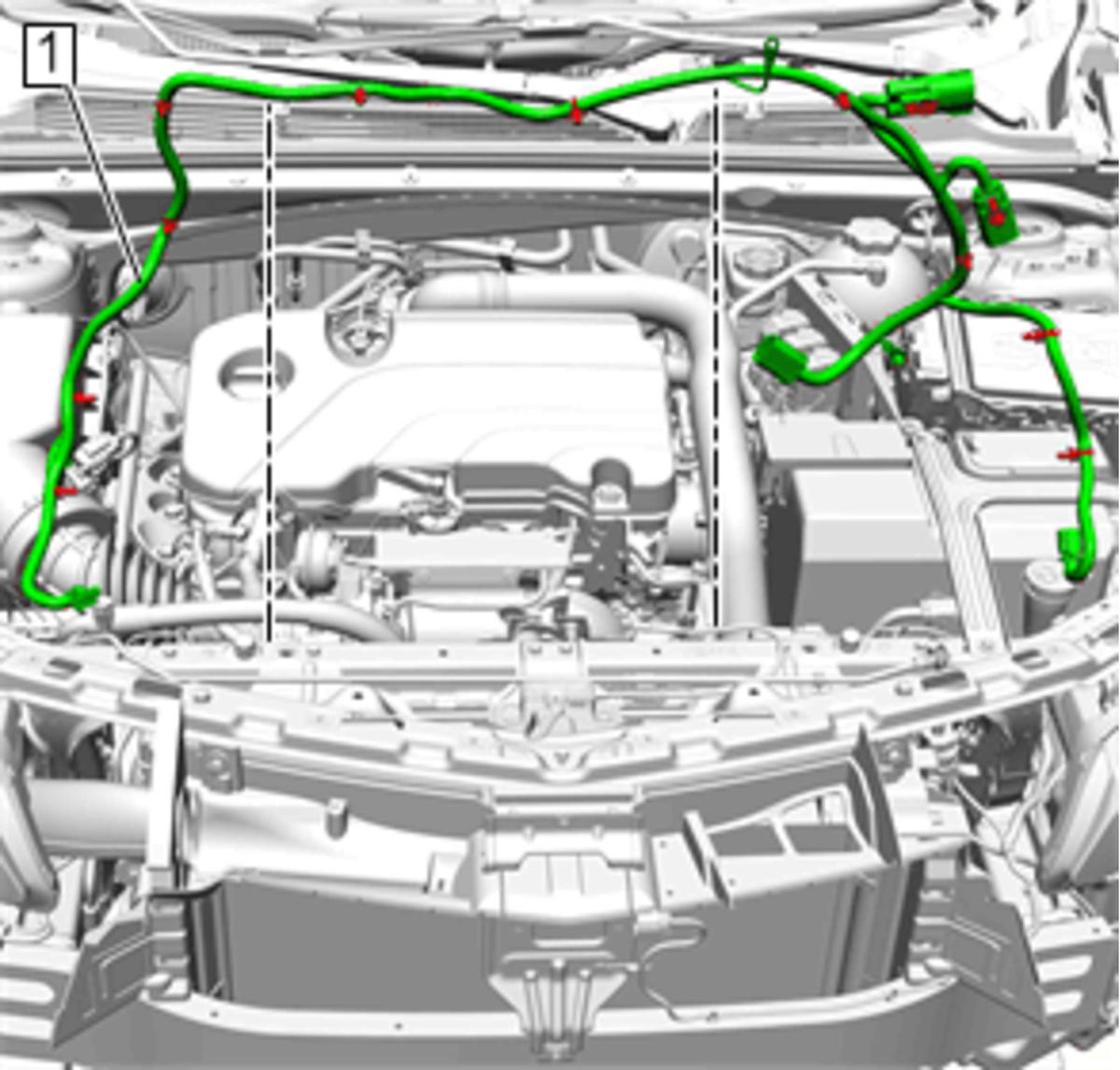

Maneuver the engine coolant fan wiring harness (1) into the engine compartment.
Courtesy of GENERAL MOTORS COMPANY

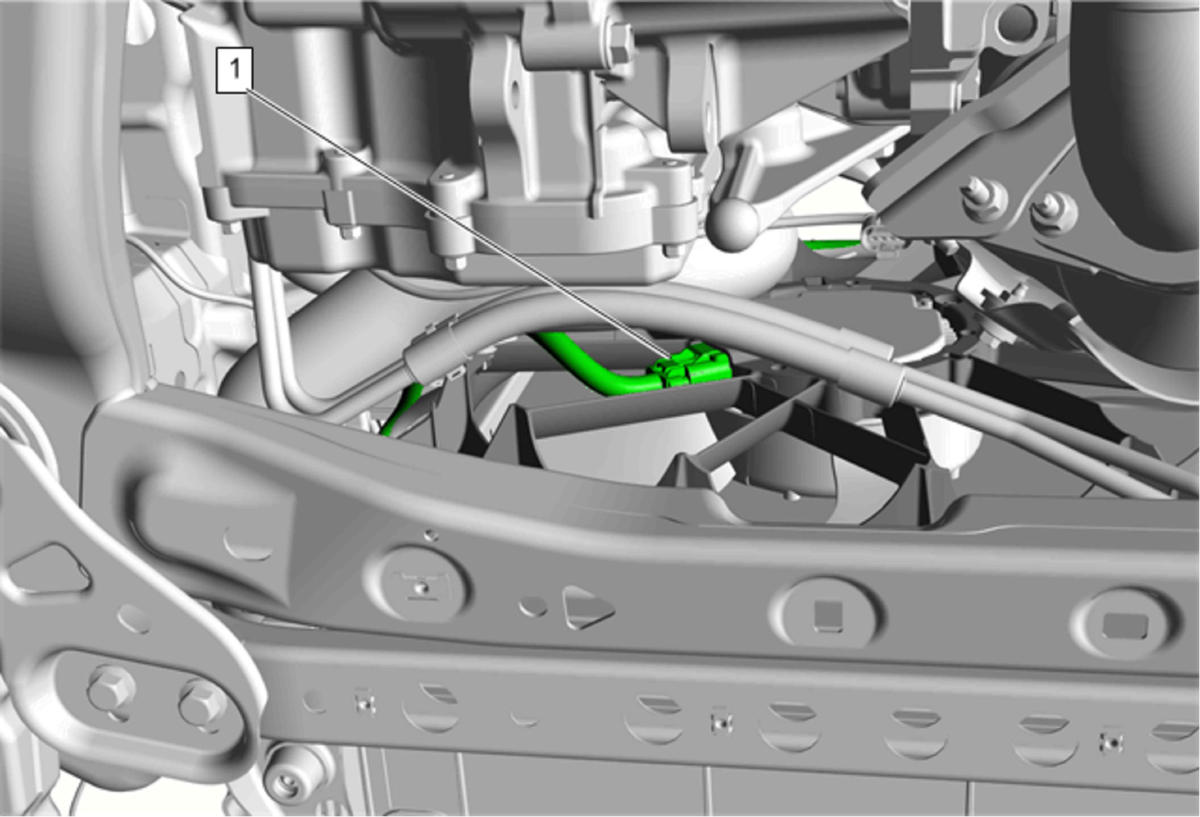

Electrical Connector @ Engine Coolant Fan Motor (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

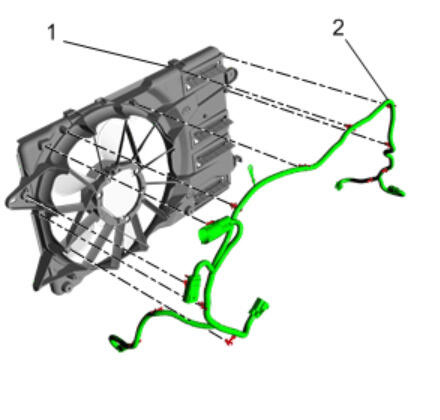

Engine Coolant Fan MotorWiring Harness (2) @ Engine Coolant Fan Shroud (1) - Clip
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install the ground terminal (3) onto the ground stud.
Ground Nut (2) - Install and tighten Ground Repair
Connect the engine cooling fan wiring harness connectors (1) to the engine wiring harness.
Courtesy of GENERAL MOTORS COMPANY

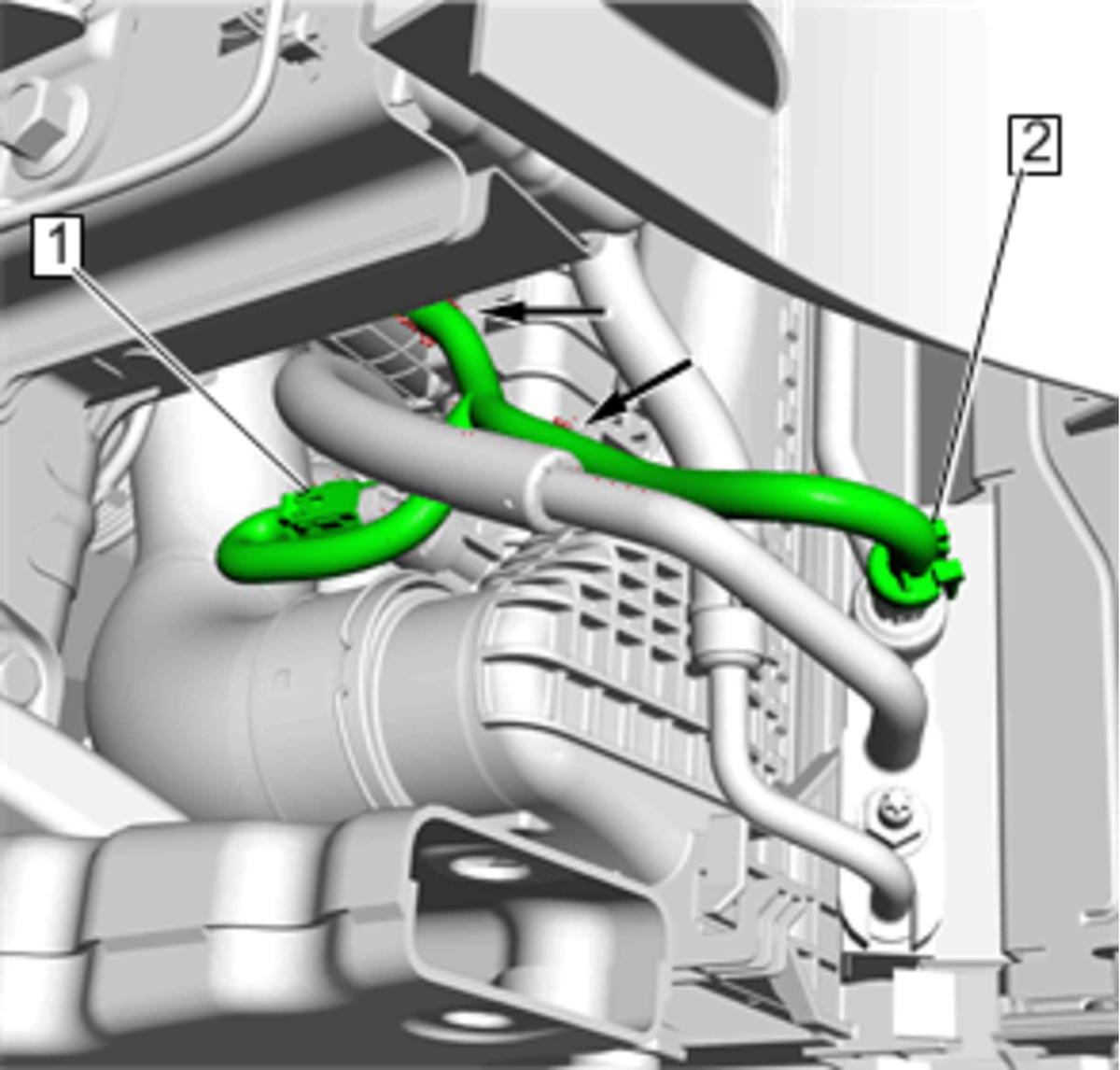

Clip the engine coolant fan wiring harness onto the vehicle indicated by the arrows.
Electrical Connector @ Turbocharger Air Pressure Sensor (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

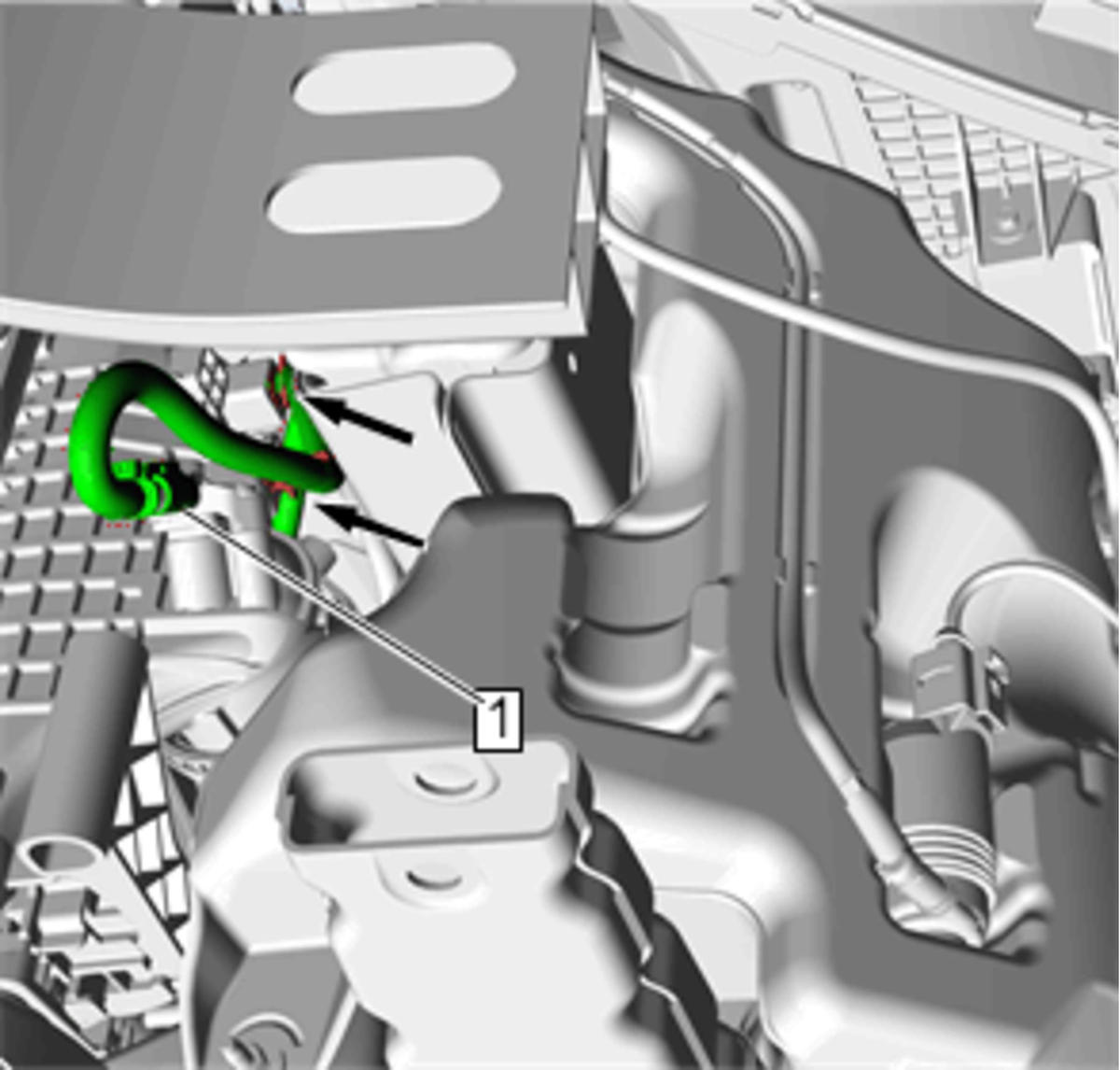

Clip the engine coolant fan wiring harness onto the vehicle indicated by the arrows.
Electrical Connector @ Air Conditioning Refrigerant Pressure Sensor (2) - Connect
Electrical Connector @ Engine Coolant Temperature Sensor (1) - Connect
Connect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (1) - Install - Front Bumper Fascia Replacement
