Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

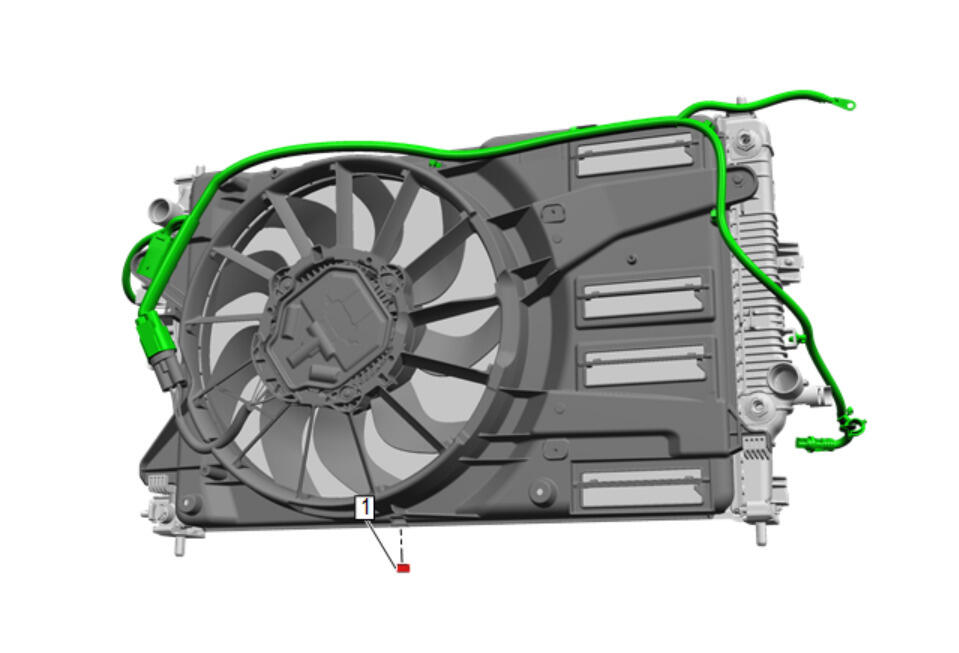

Engine Coolant Fan Wiring Harness (2) @ Engine Coolant Fan - Install
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan (2) @ Radiator - Install

CAUTION:

Refer to Fastener Caution .

Engine Coolant Fan Shroud Bolt (1) @ Radiator - Install and tighten [2x] 5.1 N.m (45 lb in)
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Shroud Clip (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Module Radiator (1) - Install - Radiator Replacement (LFV, LTG without MRG) , or Radiator Replacement (LKN) , or Radiator Replacement (LFV, LTG with MRG)
