Engine Coolant Fan Heat Shield Replacement (LTG)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

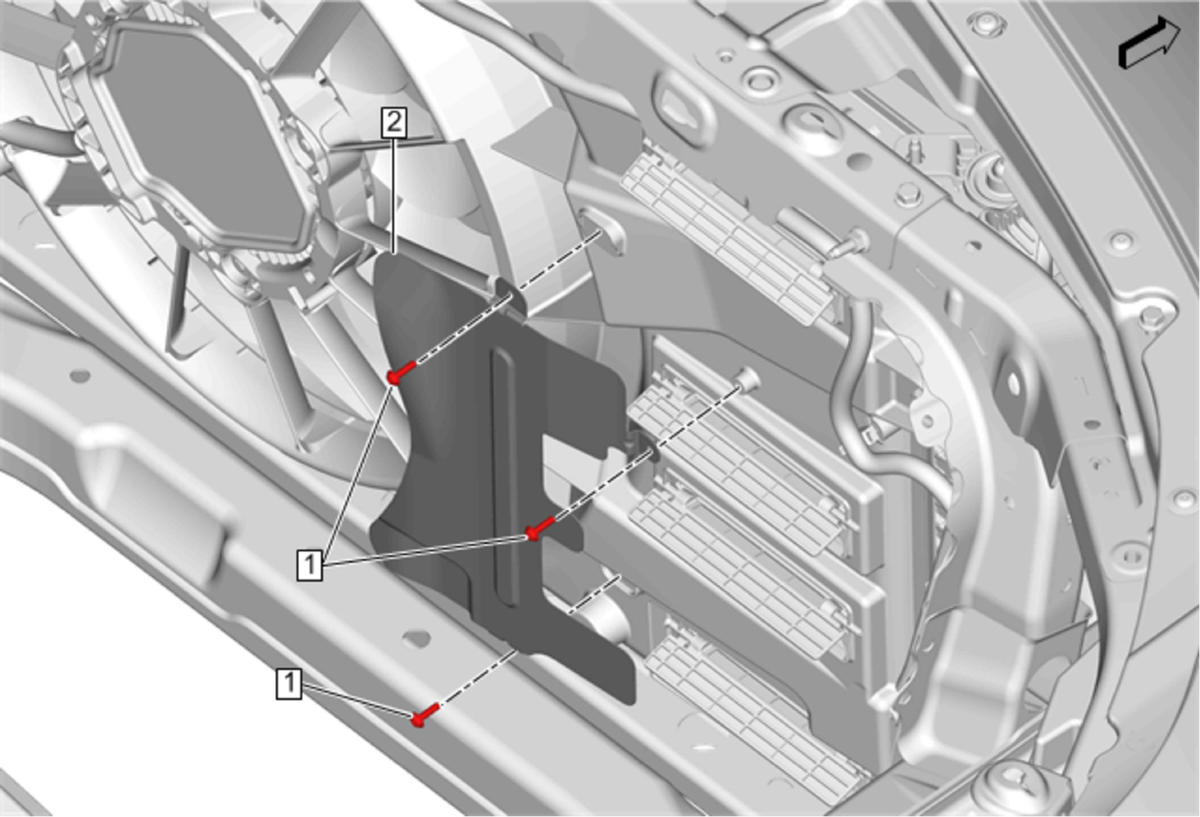

| Callout | Component Name |
|---|---|
| Preliminary Procedure Airbag Front End Discriminating Sensor Replacement |
|
| 1 | Engine Coolant Fan Heat Shield Bolt [3x]
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Engine Coolant Fan Heat Shield |
