Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Engine Coolant Air Bleed Hose Connector (3) @ Water Outlet - Install
- Engine Coolant Air Bleed Hose Connector Retainer (2) - Engage
- Engine Coolant Air Bleed Hose Clip (1) @ Wiring Harness - Engage
Engine Coolant Air Bleed Hose (2) @ Exhaust Gas Recirculation Cooler Outlet Pipe - Install
- Engine Coolant Air Bleed Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type

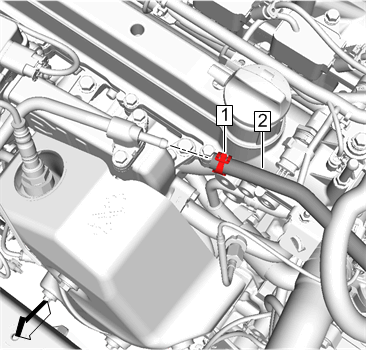

Engine Coolant Air Bleed Hose (2) @ Radiator Surge Tank - Install
- Engine Coolant Air Bleed Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Intake Manifold Cover (1) - Install - Intake Manifold Cover Replacement
- Fill the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
- Start the engine and check for coolant leaks.
