Coolant Heater Cord Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

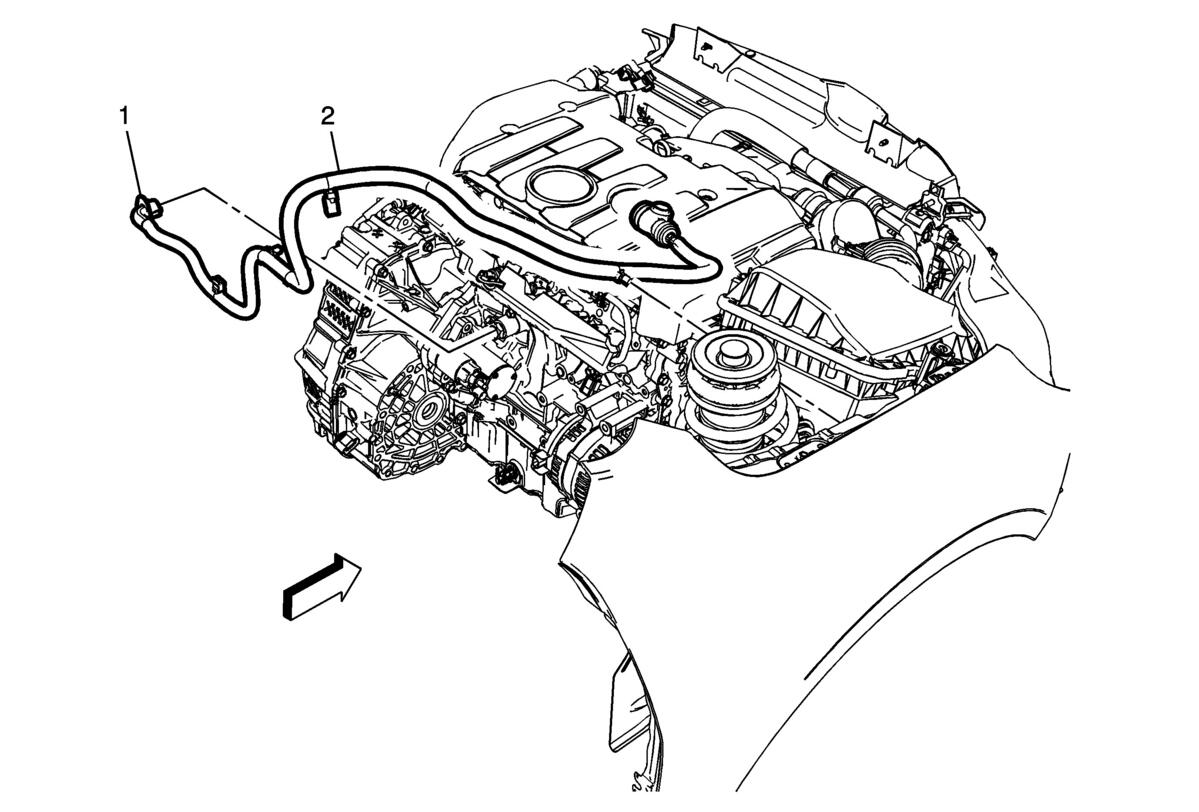

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Coolant Heater Connector |
| 2 | Coolant Heater Cord
NOTE:
Observe how the coolant heater cord was routed within the engine compartment. |
