Airbag Front End Discriminating Sensor Duct Replacement (LTG)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

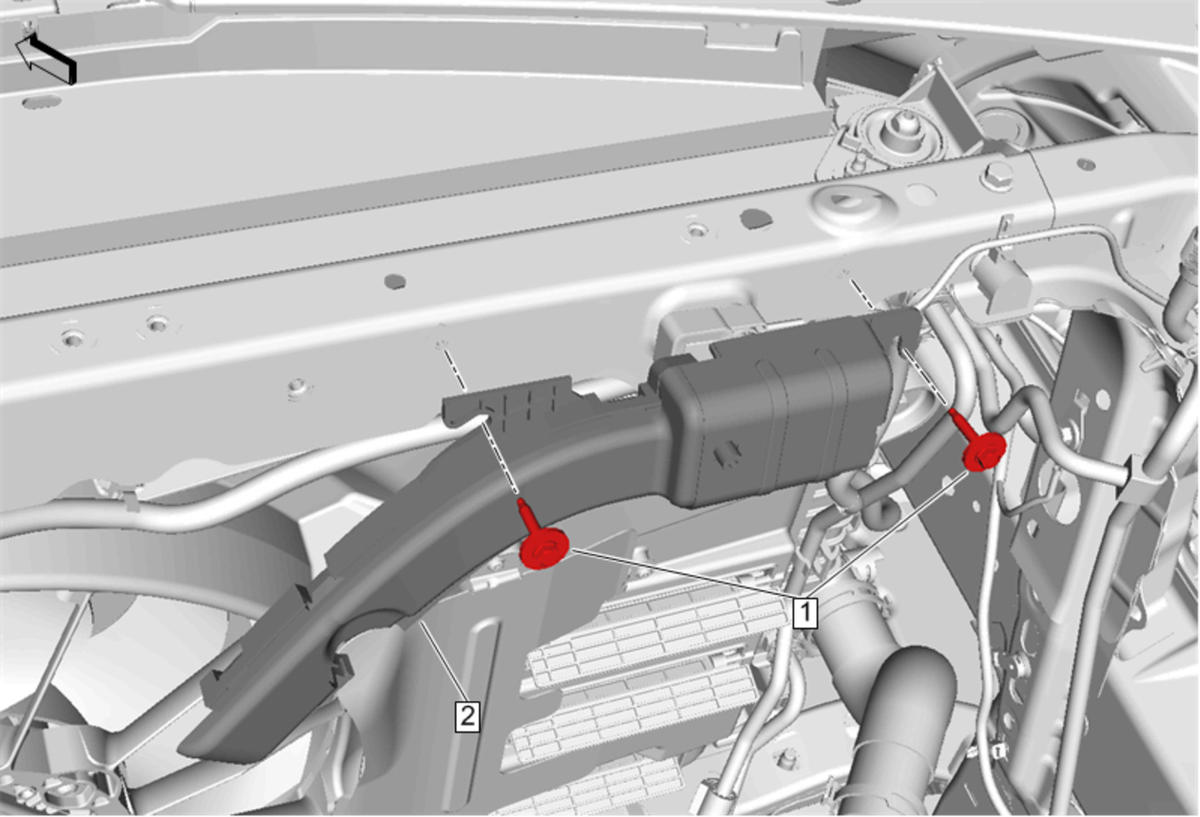

| Callout | Component Name |
|---|---|
| 1 | Airbag Front End Discriminating Sensor Duct Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Airbag Front End Discriminating Sensor Duct |
