Automatic Transmission Seal Kit (5 of 5)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

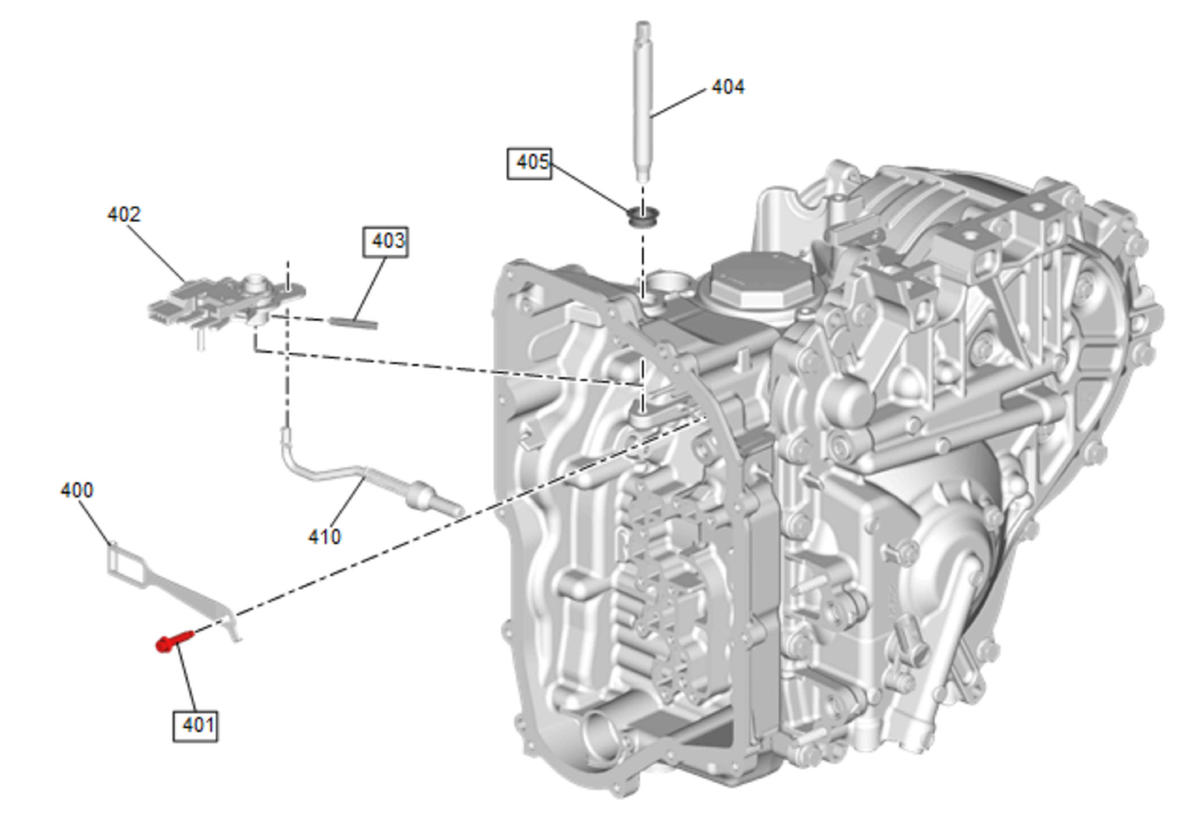

Automatic Transmission Seal Kit (5 of 5)
| Callout | Quantity | Component Name |
|---|---|---|
| 401 | 1 | Manual Shift Detent Spring Bolt |
| 403 | 1 | Manual Shift Detent Lever Hub Pin |
| 405 | 1 | Manual Shift Shaft Seal |
