Automatic Transmission Seal Kit (4 of 5)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

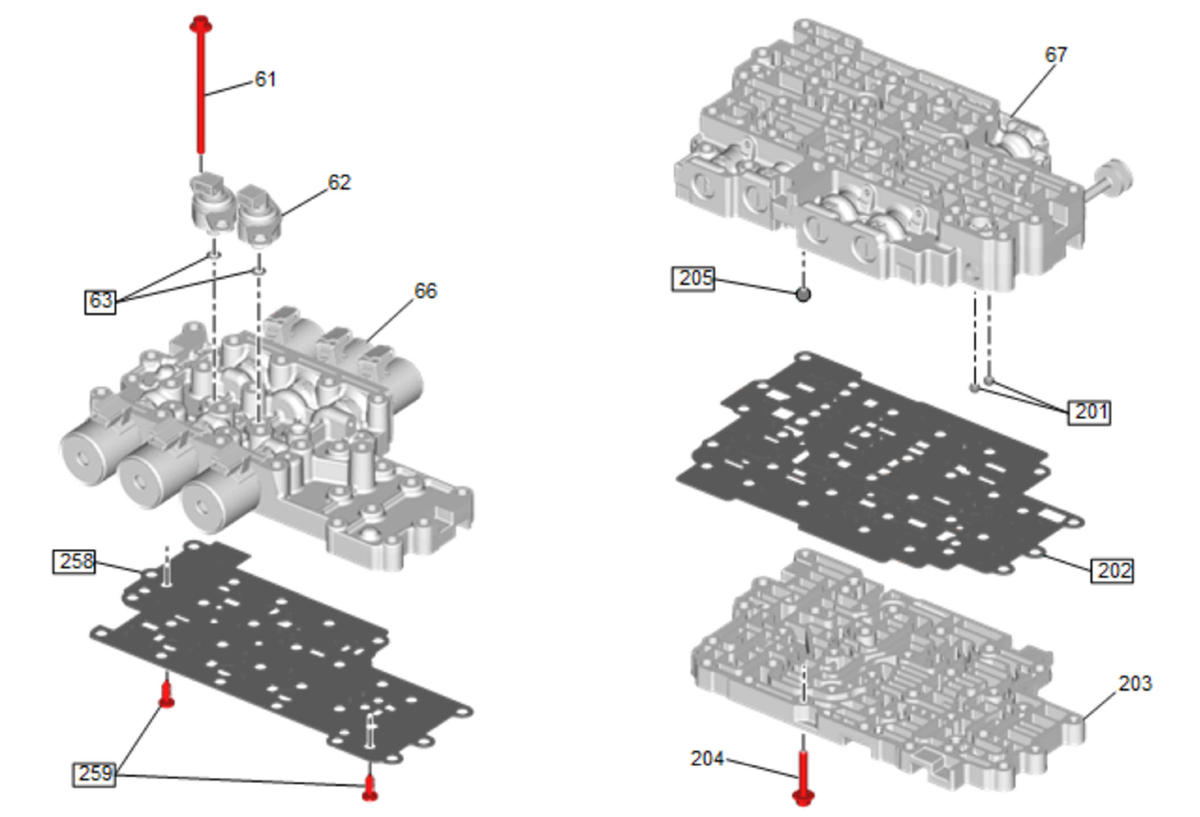

Automatic Transmission Seal Kit (4 of 5)
| Callout | Quantity | Component Name |
|---|---|---|
| 63 | 2 | Automatic Transmission Fluid Pressure Sensor Seal |
| 201 | 2 | Control Valve Body Ball Check Valve |
| 202 | 1 | Control Valve Body Spacer Plate |
| 205 | 1 | Control Valve Body Ball Check Valve |
| 258 | 1 | Control Valve Body Spacer Plate |
| 259 | 2 | Control Valve Body Spacer Plate Retainer |
