Automatic Transmission Seal Kit (2 of 5)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

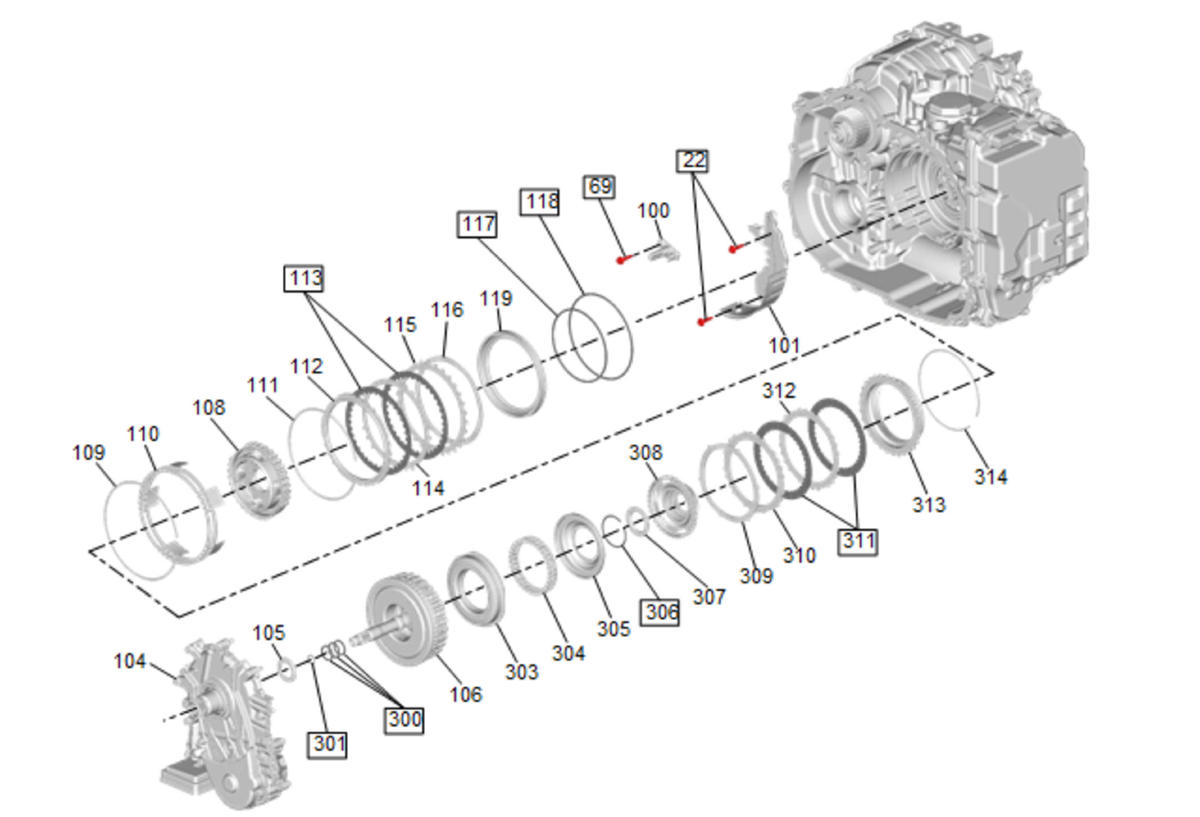

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Automatic Transmission Seal Kit (2 of 5)
| Callout | Quantity | Component Name |
|---|---|---|
| 22 | 2 | Front Differential Carrier Baffle Bolt |
| 69 | 1 | Automatic Transmission Speed Sensor Bolt |
| 113 | 2 | Reverse Clutch Plate - Friction |
| 117 | 1 | Reverse Clutch Piston Inner Seal |
| 118 | 1 | Reverse Clutch Piston Outer Seal |
| 300 | 3 | Turbine Shaft Fluid Seal Ring |
| 301 | 1 | Turbine Shaft Seal |
| 306 | 1 | Forward Clutch Piston Dam Retaining Ring |
| 311 | 2 | Forward Clutch Plate - Friction |
