Automatic Transmission Seal Kit (1 of 5)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

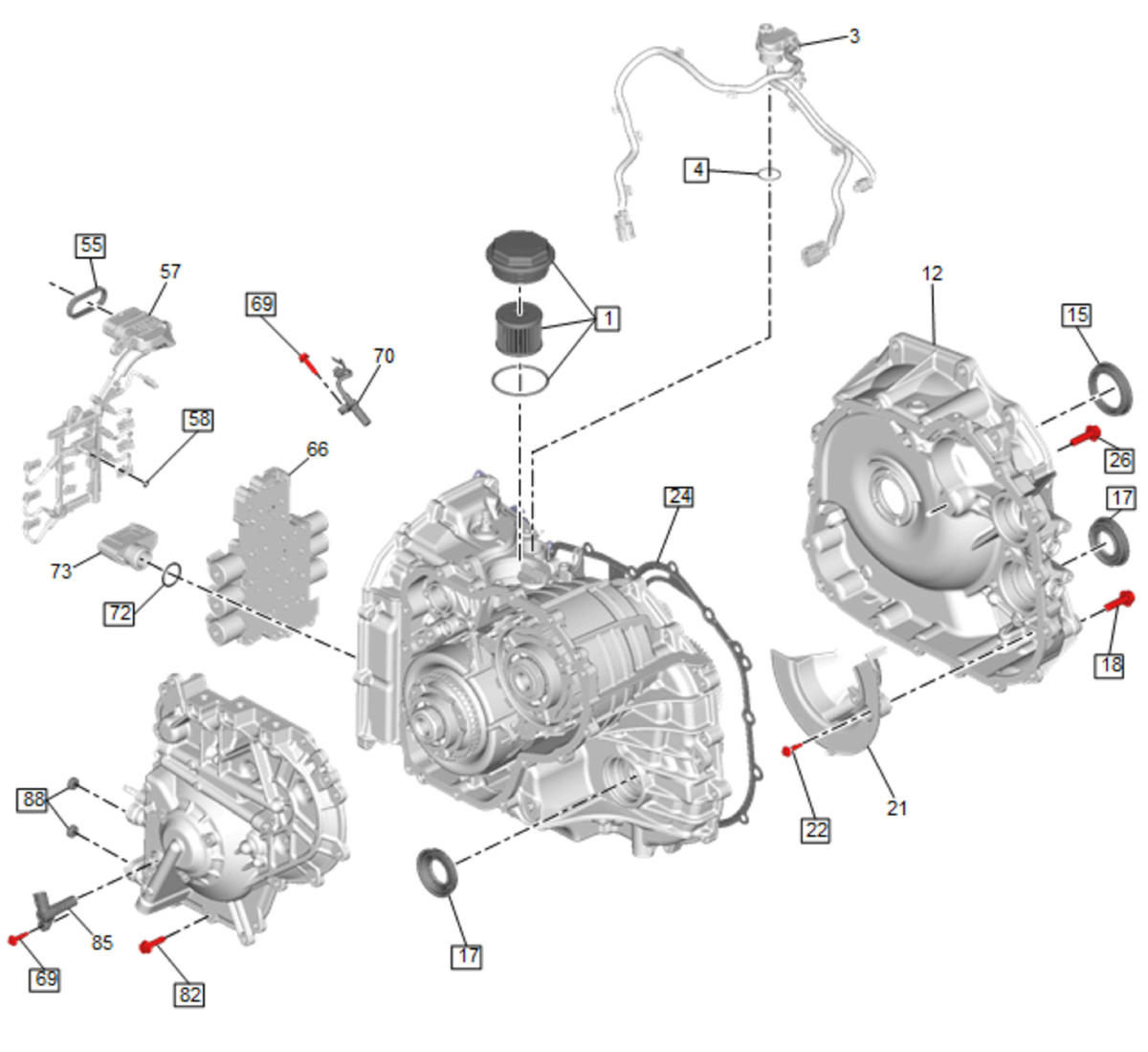

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Automatic Transmission Seal Kit (1 of 5)
| Callout | Quantity | Component Name |
|---|---|---|
| 1 | 1 | Automatic Transmission Fluid Filter |
| 4 | 1 | Automatic Transmission Wiring Connector Seal |
| 15 | 1 | Torque Converter Fluid Seal |
| 17 | 2 | Front Wheel Drive Shaft Oil Seal |
| 18 | 13 | Torque Converter and Differential Housing Bolt |
| 22 | 1 | Front Differential Carrier Baffle Bolt |
| 24 | 1 | Torque Converter Housing Gasket |
| 26 | 5 | Torque Converter and Differential Housing Bolt |
| 55 | 1 | Control Valve Body Cover Wiring Connector Hole Seal |
| 58 | 1 | Automatic Transmission Fluid Temperature Sensor Seal |
| 69 | 2 | Automatic Transmission Speed Sensor Bolt |
| 72 | 1 | Automatic Transmission Fluid Level Control Valve Seal |
| 82 | 15 | Automatic Transmission Case Cover Bolt |
| 88 | 2 | Transmission Fluid Cooler Pipe Fitting Seal |
