Automatic Transmission Fluid Pump Seal Kit
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

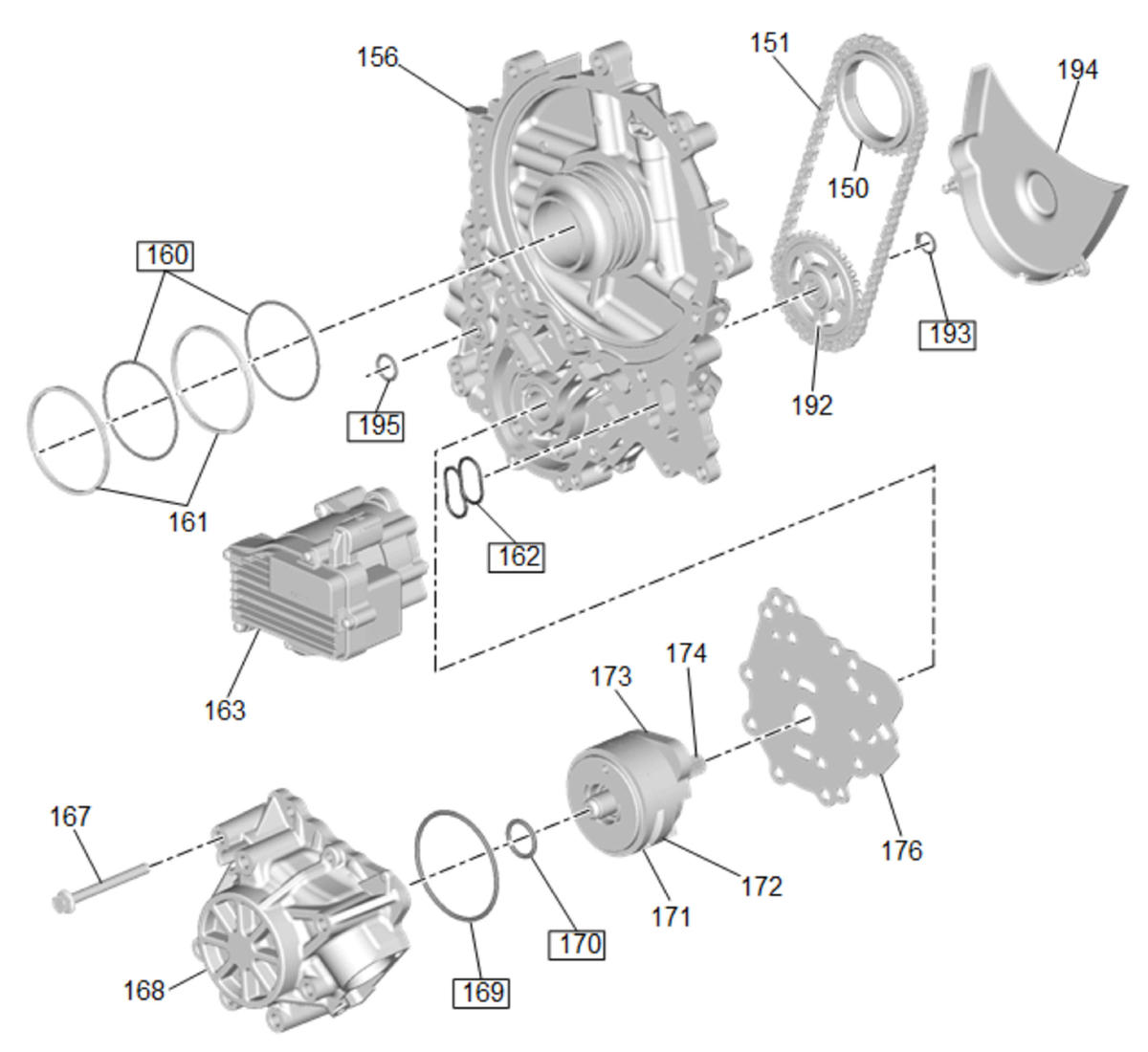

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
Automatic Transmission Fluid Pump Seal Kit
| Callout | Quantity | Component Name |
|---|---|---|
| 160 | 2 | Forward Clutch Housing Fluid Seal Ring |
| 162 | 1 | Automatic Transmission Auxiliary Fluid Pump Seal |
| 169 | 1 | Automatic Transmission Fluid Pump Pressure Plate Seal |
| 170 | 1 | Automatic Transmission Fluid Pump Pressure Plate Seal |
| 193 | 1 | Driven Sprocket Retaining Ring |
| 195 | 1 | Automatic Transmission Fluid Pump Seal |
