Sunroof Window Seal Replacement (Inner)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Roof Stationary Window Replacement Sunroof Window Replacement

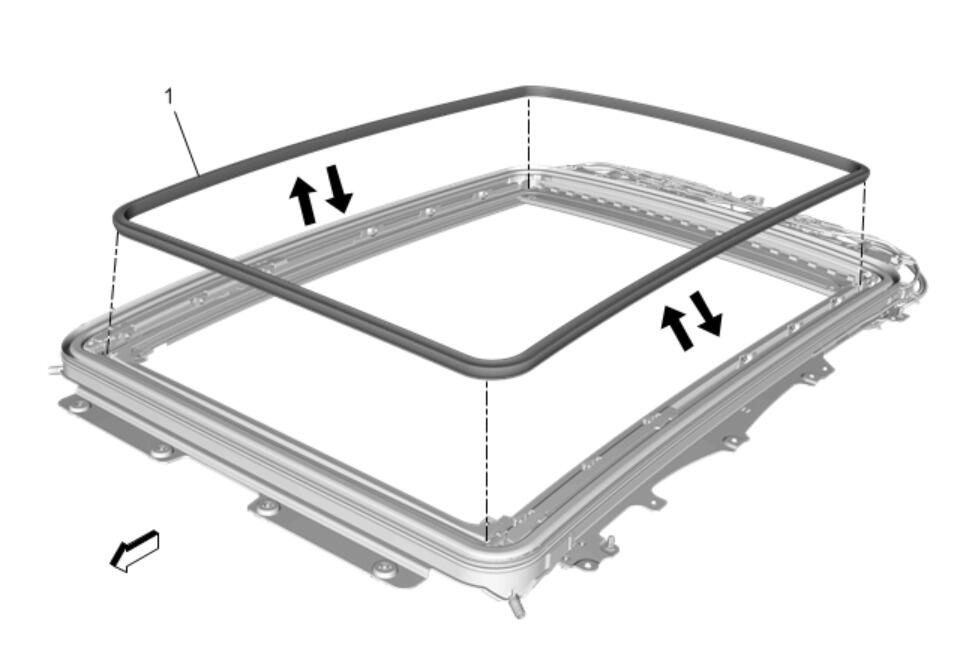

1	Sunroof Window Seal - Inner Procedure Start at one end of the seal, pulling up and away from the frame. Clean around the edge of the inside surface of the housing with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint-free cloth. Water test the vehicle before installing the headlining trim panel.

Callout

Component Name

Preliminary Procedures

Roof Stationary Window Replacement
Sunroof Window Replacement

Sunroof Window Seal - Inner

Procedure

Start at one end of the seal, pulling up and away from the frame.
Clean around the edge of the inside surface of the housing with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint-free cloth.
Water test the vehicle before installing the headlining trim panel.
