Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

It is Not necessary to remove the sunroof module to replace the sunroof sunshade.

Place the sunshade in the full open position.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed.

Headlining Trim Panel (2) - Remove - Headlining Trim Panel Replacement (With Sunroof) , or Headlining Trim Panel Replacement (Without Sunroof)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Be careful when releasing the tab on the assembly clip as not to damage components. Lower portion of the clip is thin and fragile.

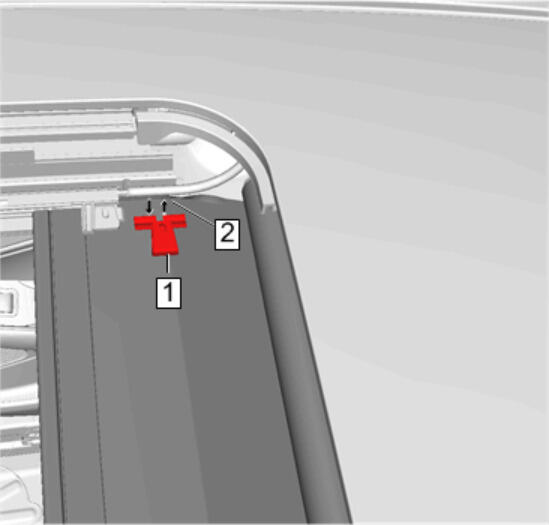

Lift the top of the sunshade retainer (1) upward while sliding each sunshade retainer (1) rearward to remove from the sunshade clip (2).
Courtesy of GENERAL MOTORS COMPANY

Remove each sunshade retainer (1) by sliding inward from the edge of the sunshade material (2).
Courtesy of GENERAL MOTORS COMPANY

Remove the sunshade leading edge stiffener (1) by pulling it out of the front of the sunshade clips (2).
Courtesy of GENERAL MOTORS COMPANY

Ensure folding of the sunshade (1) occurs in this area of the sunshade.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Remove the sunshade with the sunshade bracket from the sunroof module assembly.

Remove the 5 sunshade screws (1) that retain the sunshade bracket (2) to the sunroof module assembly (3).
Courtesy of GENERAL MOTORS COMPANY

Slide the sunshade (1) to the left and lift right side of sunshade (1) from the sunshade bracket (2).
