Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Install the ends of the sunshade (1) into the sunshade bracket (2),
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

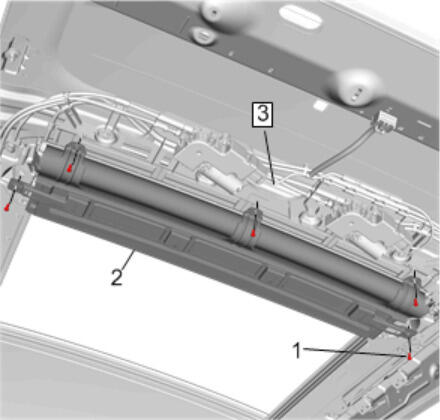

Install the 5 sunshade screws (1) that retain the sunshade bracket (2) to the sunroof module assembly (3) Iand tighten to 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Ensure the unfolding of the sunshade (1) occurs in this area of the sunshade.
Courtesy of GENERAL MOTORS COMPANY

Pull the sunshade leading edge stiffener (1) evenly, slightly past the front of the sunshade clips (2).
Courtesy of GENERAL MOTORS COMPANY

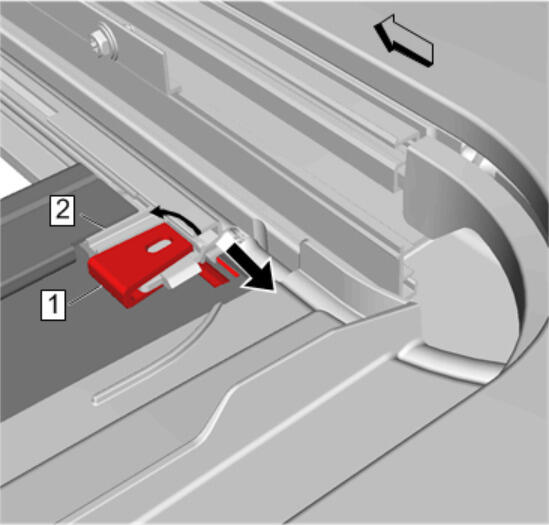

Lift the top of the sunshade retainer (1) upward while sliding each sunshade retainer (1) forward to install on the sunshade clip (2).
Courtesy of GENERAL MOTORS COMPANY

Headlining Trim Panel (2) - Install - Headlining Trim Panel Replacement (With Sunroof) , or Headlining Trim Panel Replacement (Without Sunroof)
Ensure that the sunroof sunshade and window operate properly. Sunroof/Sunshade Motor Initialization
