Sunroof Air Deflector Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

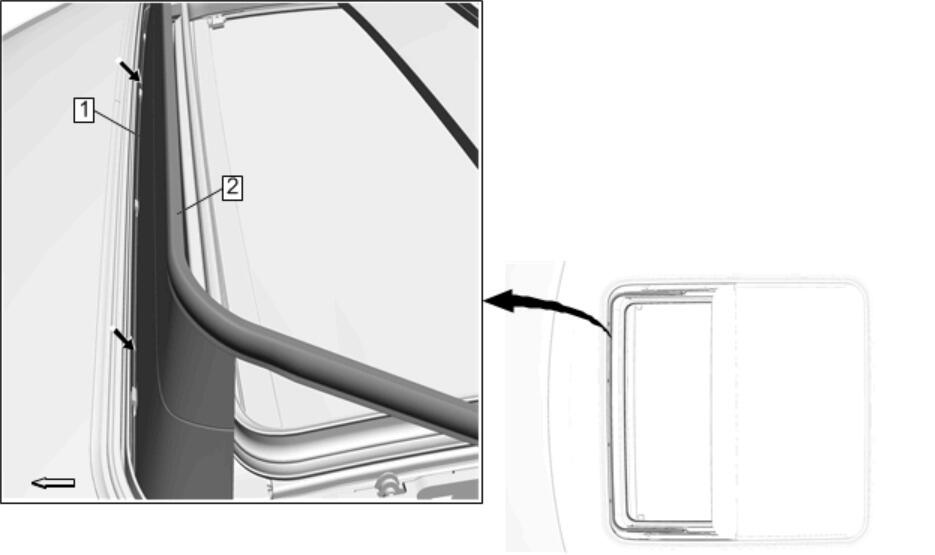

Callout	Component Name
1	Sunroof Air Deflector Retainer Procedure Open the front sunroof window to the full open position. Using the appropriate tool, push the sunroof air deflector retainer down and back, then pull upward to release from the sunroof module assembly clips.
2	Sunroof Air Deflector Procedure Lift the sunroof air deflector up and back to remove. NOTE: Verify the sunroof window and the sunroof air deflector for proper operation.

Callout

Component Name

Sunroof Air Deflector Retainer

Procedure

Open the front sunroof window to the full open position.
Using the appropriate tool, push the sunroof air deflector retainer down and back, then pull upward to release from the sunroof module assembly clips.

Sunroof Air Deflector
Procedure
Lift the sunroof air deflector up and back to remove.

NOTE:

Verify the sunroof window and the sunroof air deflector for proper operation.
