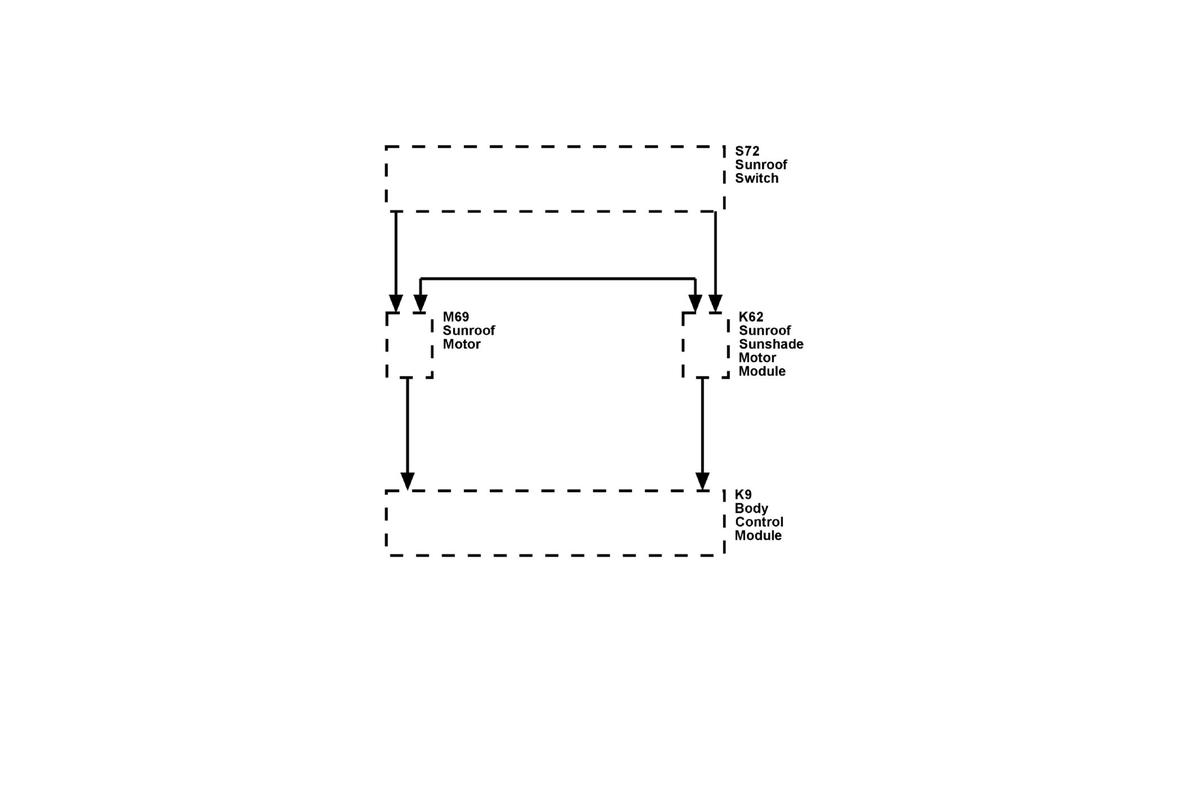

Sunroof Control Block Diagram (CF5)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
S72	S72 Sunroof Switch
M69	M69 Sunroof Motor
K62	K62 Sunroof Sunshade Motor Module
K9	K9 Body Control Module
