Installation Procedure
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Refinish the rear end spoiler as necessary. Paint Identification
- Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface of the rear compartment lid.

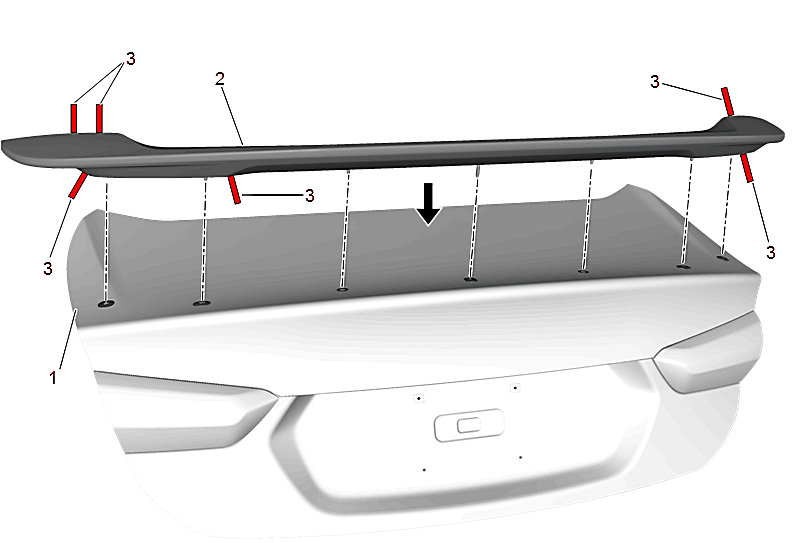

Start the tape tabs (3) and fit the spoiler (2) to the rear compartment lid (1). Pull and remove the tape tabs (3), before studs have completely penetrated the holes and clips.
- Apply pressure to the entire rear end spoiler surface. Ensure the clips are engaged and the tape is fully seated.
Rear End Spoiler Nut (1) - Install and tighten [2x] 7 N.m (62 lb in)
Rear Compartment Lid Inner Panel Trim (2) - Install - Rear Compartment Lid Inner Panel Trim Replacement
