Rear Compartment Lid Nameplate Replacement (LT)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

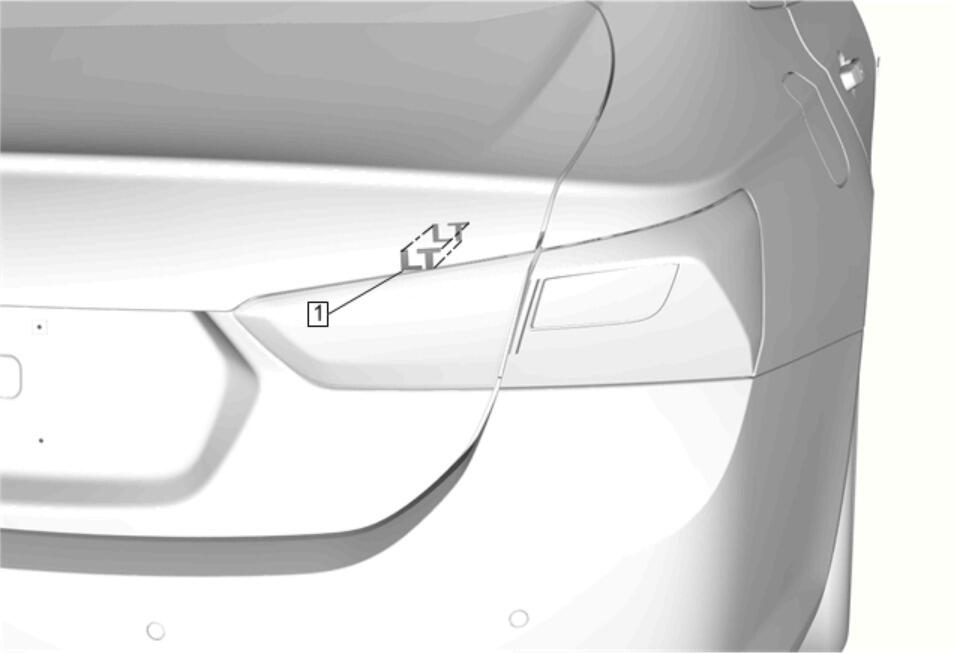

Callout	Component Name
1	Rear Compartment Lid Emblem/Nameplate CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength. Use a heat gun or equivalent to remove the old emblem/nameplate. Clean the area with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water to remove any left over adhesive residue. Dry the area thoroughly with a clean dry cotton cloth prior to installing the new emblem/nameplate. When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Using the palm of the hand or an applicable roller with approximately 10 lbs of pressure, wet out the emblem/name plate to the rear compartment lid to ensure full adhesion of the emblem/nameplate is made.

Callout

Component Name

Rear Compartment Lid Emblem/Nameplate

CAUTION:

Refer to Exterior Trim Emblem Removal Caution .

Procedure

The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
Use a heat gun or equivalent to remove the old emblem/nameplate.
Clean the area with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water to remove any left over adhesive residue.
Dry the area thoroughly with a clean dry cotton cloth prior to installing the new emblem/nameplate.
When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Using the palm of the hand or an applicable roller with approximately 10 lbs of pressure, wet out the emblem/name plate to the rear compartment lid to ensure full adhesion of the emblem/nameplate is made.
