Active Noise Cancellation Module Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

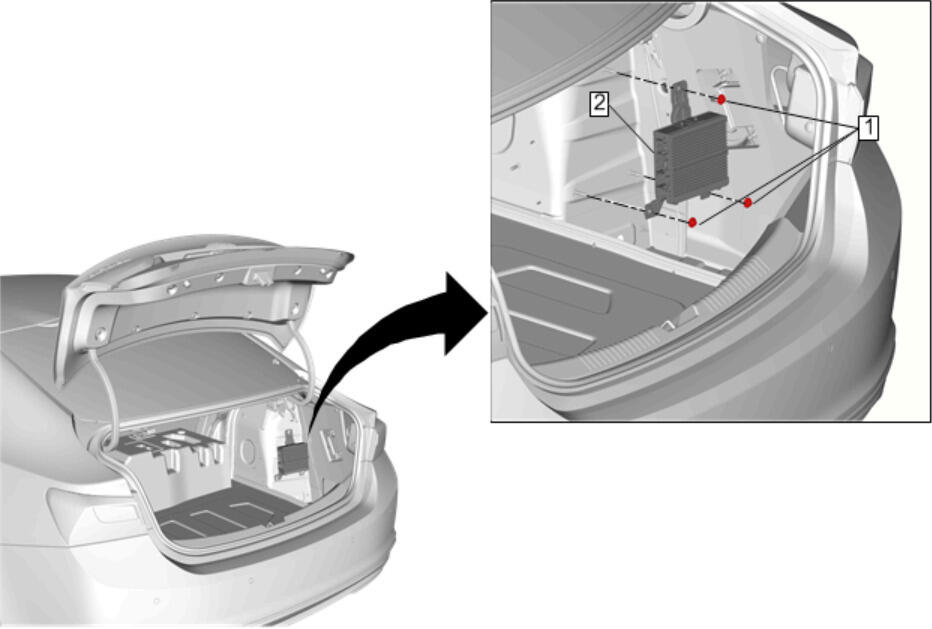

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side (Without HP4) , or Rear Compartment Side Trim Replacement - Right Side (With HP4) - Reposition
1	Active Noise Cancellation Module Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Active Noise Cancellation Module Procedure Disconnect the electrical connectors. Control Module References for programming and setup procedures, if required

Callout

Component Name

Preliminary Procedure
Rear Compartment Side Trim Replacement - Right Side (Without HP4) , or Rear Compartment Side Trim Replacement - Right Side (With HP4) - Reposition

Active Noise Cancellation Module Nut [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
6 N.m (53 lb in)

Active Noise Cancellation Module

Procedure

Disconnect the electrical connectors.
Control Module References for programming and setup procedures, if required
