Pedestrian Sound Alert Speaker Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

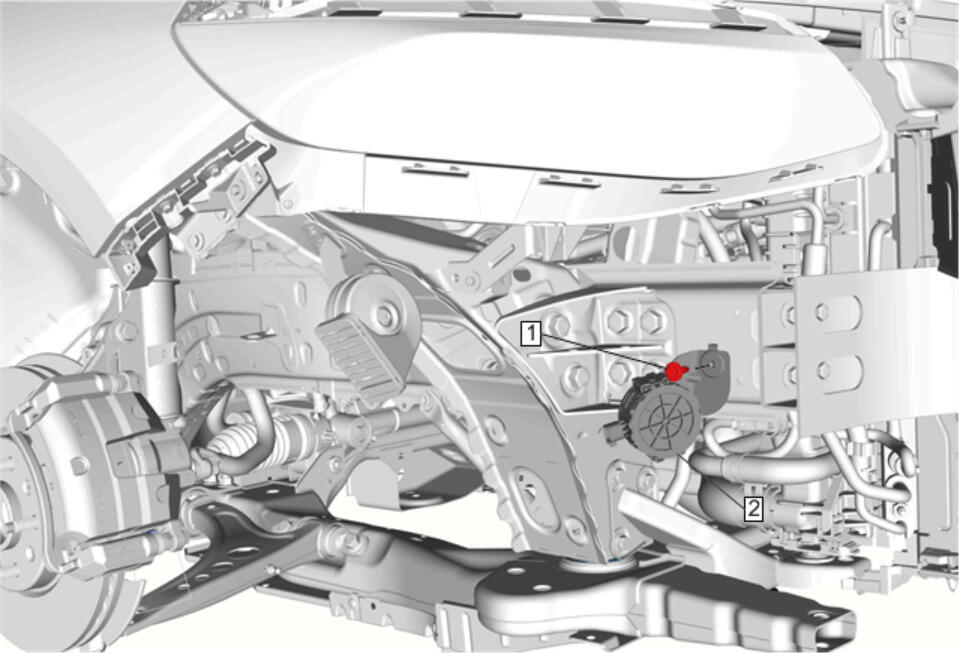

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Pedestrian Sound Alert Speaker Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Pedestrian Sound Alert Speaker Procedure Disconnect the electrical connector. Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Replacement

Pedestrian Sound Alert Speaker Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Pedestrian Sound Alert Speaker

Procedure

Disconnect the electrical connector.
Control Module References for programming and setup information, if required.
