System Description
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
The horn system consists of the following components:
- HORN fuse
- Underhood fuse block (contains PCB horn relay)
- Horn switch
- Horn assembly
- Body control module (BCM)

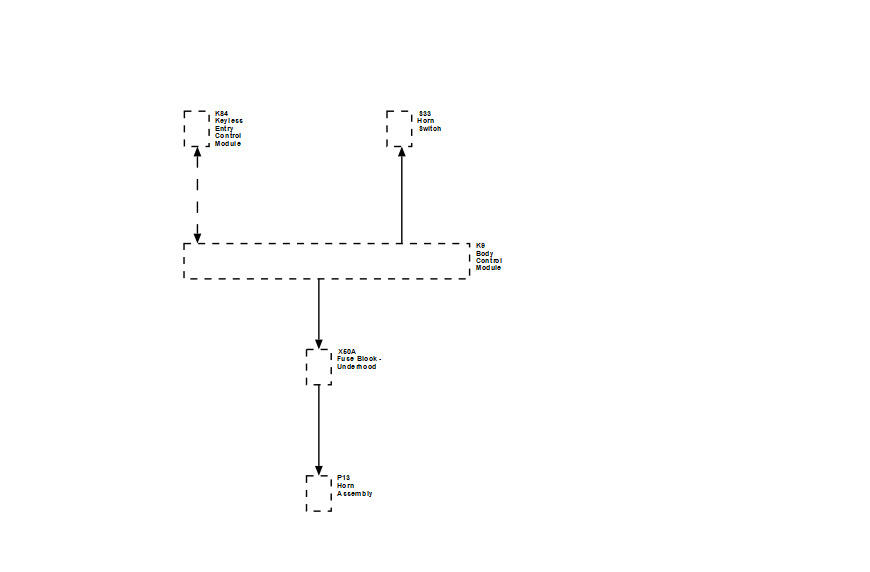

| Callout | Component Name |
|---|---|
| K84 | K84 Keyless Entry Control Module |
| S33 | S33 Horn Switch |
| K9 | K9 Body Control Module |
| X50A | X50A Fuse Block - Underhood |
| P13 | P13 Horn Assembly |
