Front Seat Tilt Adjuster Actuator Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

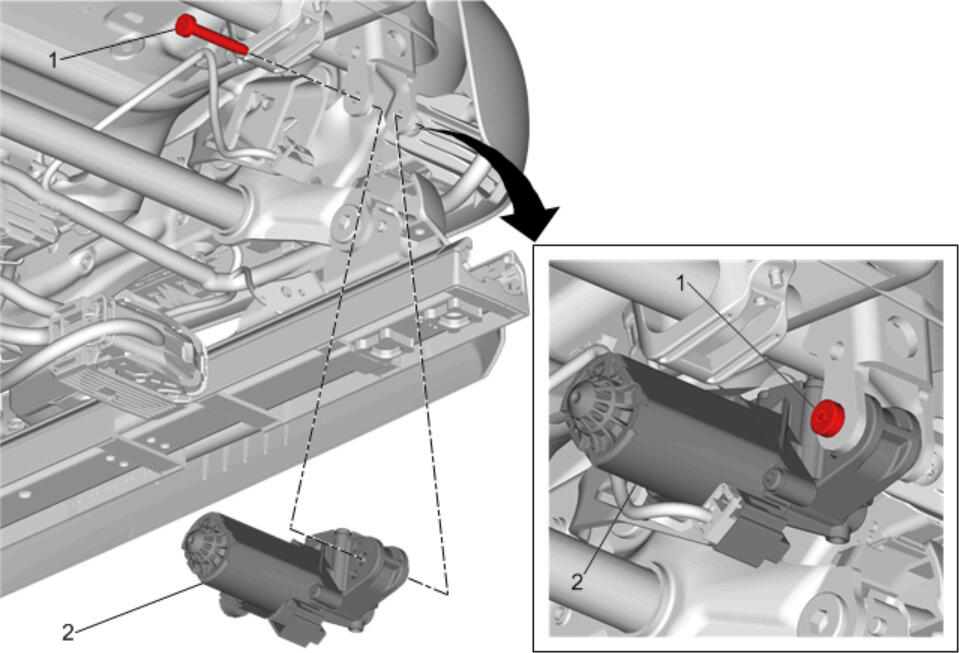

Callout	Component Name
Preliminary Procedure Front Seat Removal and Installation
1	Front Seat Tilt Adjuster Actuator Bolt CAUTION: Refer to Fastener Caution . Procedure Set the seat to it's highest position. Remove the securing bolt from the actuator and cushion frame. Tighten 8 N.m (71 lb in)
2	Front Seat Tilt Adjuster Actuator Procedure Disconnect the electrical connector. Remove the tilt adjuster actuator by pulling downward from the cushion frame.

Callout

Component Name

Preliminary Procedure
Front Seat Removal and Installation

Front Seat Tilt Adjuster Actuator Bolt

CAUTION:

Refer to Fastener Caution .

Procedure

Set the seat to it's highest position.
Remove the securing bolt from the actuator and cushion frame.

Tighten
8 N.m (71 lb in)

Front Seat Tilt Adjuster Actuator

Procedure

Disconnect the electrical connector.
Remove the tilt adjuster actuator by pulling downward from the cushion frame.
