Front Seat Adjuster Memory Module Bracket Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

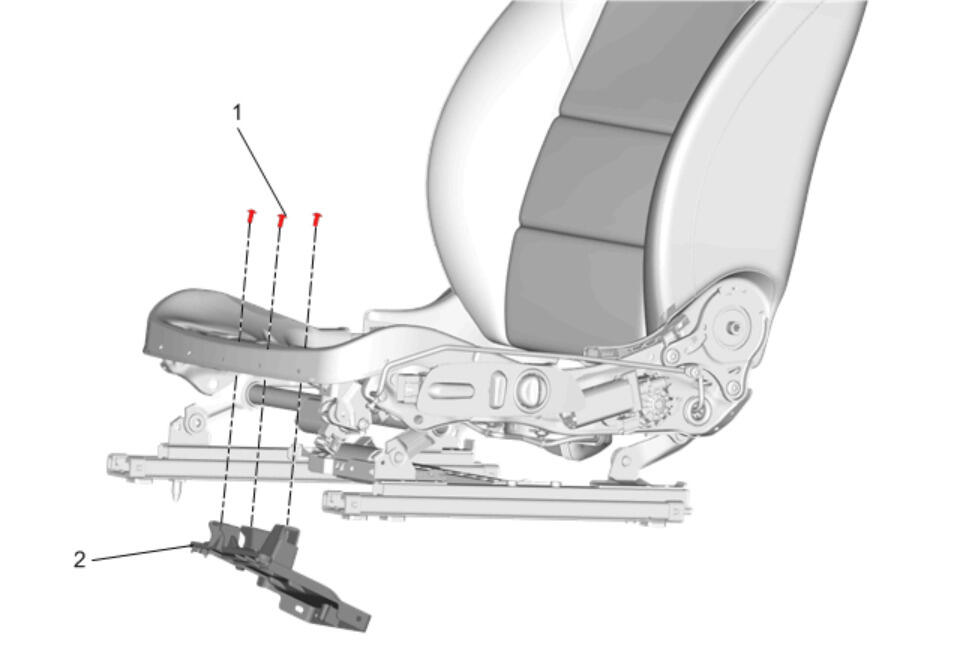

Callout	Component Name
Preliminary Procedures Front Seat Cushion Cover and Pad Replacement Front Seat Bolster Memory Module Replacement
1	Front Seat Adjuster Memory Module Bracket Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Adjuster Memory Module Bracket

Callout

Component Name

Preliminary Procedures

Front Seat Cushion Cover and Pad Replacement
Front Seat Bolster Memory Module Replacement

Front Seat Adjuster Memory Module Bracket Fastener [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Seat Adjuster Memory Module Bracket
