Front Seat Cushion Heater Replacement
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

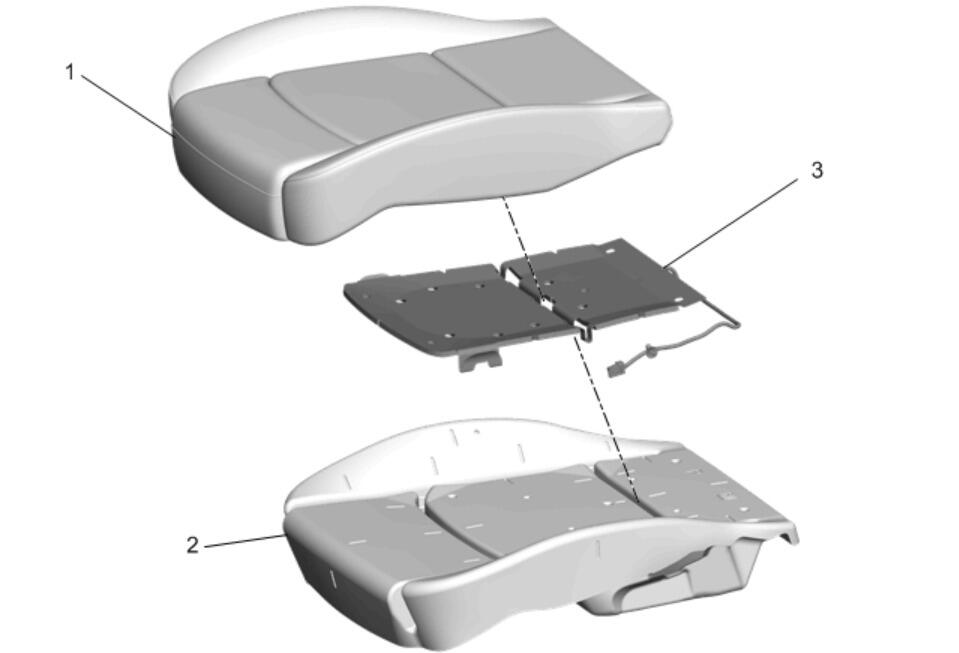

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Seat Cushion Cover and Pad Replacement |
|
| 1 | Front Seat Cushion Cover |
| 2 | Front Seat Cushion Pad |
| 3 | Front Seat Cushion Heater Procedure Remove the heater element leaving the old adhesive strips intact on the seat cushion. The new seat heater adhesive strips will be placed over the old adhesive strips.
NOTE:
Apply low heat with a heat gun to soften the adhesive before removal. |
