Wireless Charging System Module Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

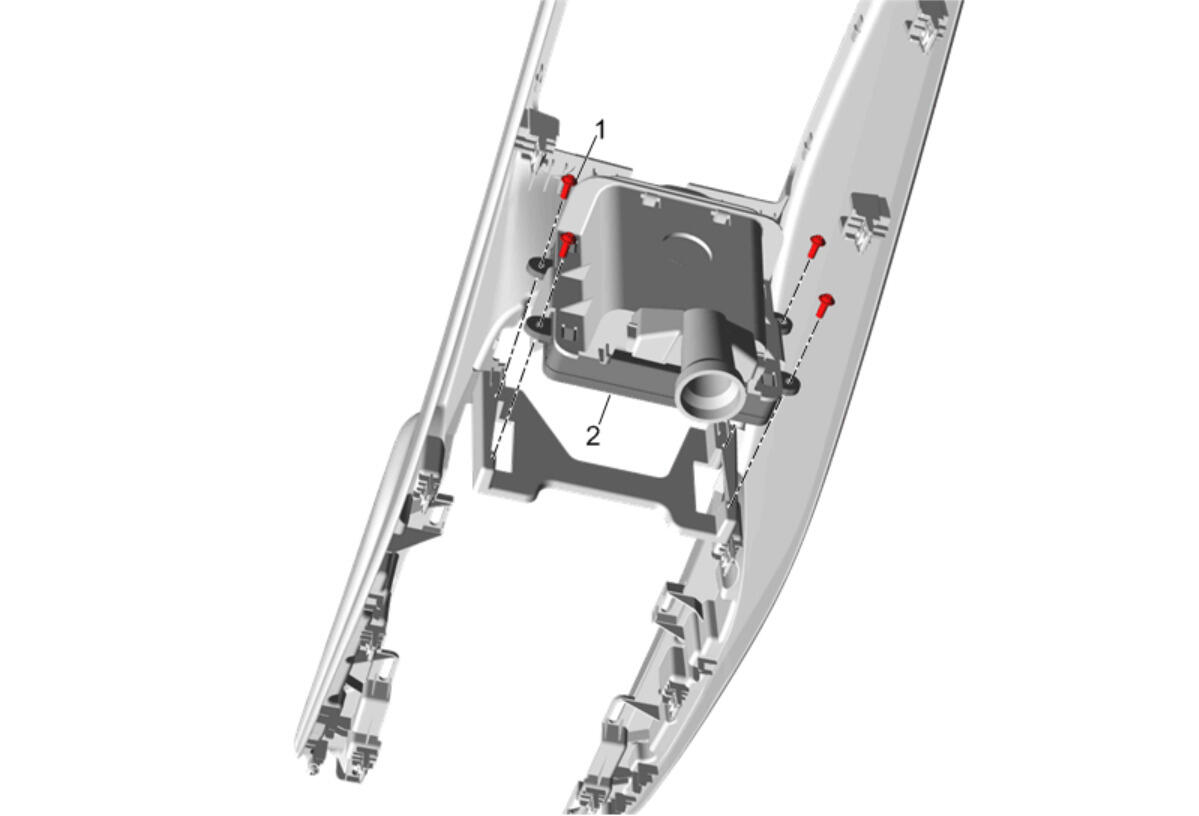

Callout	Component Name
Preliminary Procedure Front Floor Console Compartment Replacement
1	Front Floor Console Rear Bracket Bolt[4x] CAUTION: Refer to Fastener Caution . Tighten 1 N.m (9 lb in)
2	Wireless Charging System Module Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Front Floor Console Compartment Replacement

Front Floor Console Rear Bracket Bolt[4x]

CAUTION:

Refer to Fastener Caution .

Tighten
1 N.m (9 lb in)

Wireless Charging System Module

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
