Disassembly Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Front Wheel Drive Shaft - Remove - Front Wheel Drive Half Shaft Replacement - Left Side (MKE) Front Wheel Drive Half Shaft Replacement - Left Side (M3E) Front Wheel Drive Half Shaft Replacement - Left Side (MRG) , and Front Wheel Drive Half Shaft Replacement - Right Side (LTG) Front Wheel Drive Half Shaft Replacement - Right Side (LKN) Front Wheel Drive Half Shaft Replacement - Right Side (LFV)
Place the wheel drive shaft horizontally in a bench vise.
Courtesy of GENERAL MOTORS COMPANY

Using a side cutter or other suitable tool, remove the retaining clamps (1) from the inner CV boot.

DISCARD the clamps.
Courtesy of GENERAL MOTORS COMPANY

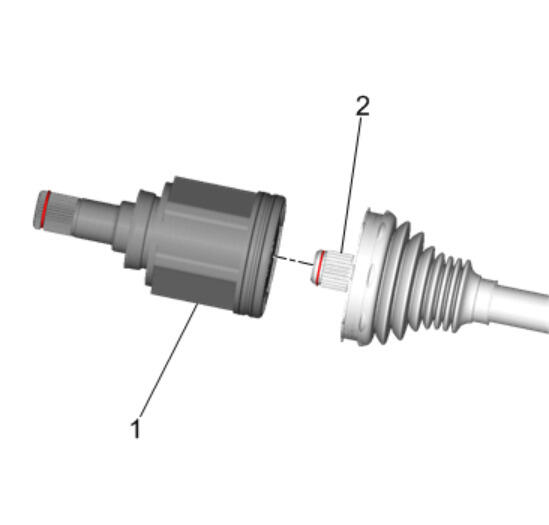

Using a suitable driver and a hammer, remove the CV joint (1) from the wheel drive shaft (2).
Courtesy of GENERAL MOTORS COMPANY

Remove the CV boot (1) from the wheel drive shaft (2).

DISCARD the boot.
Courtesy of GENERAL MOTORS COMPANY

Retaining Ring (1) @ Wheel Drive Shaft (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Retaining Ring (1) @ Inner Joint (2) - Remove and DISCARD
