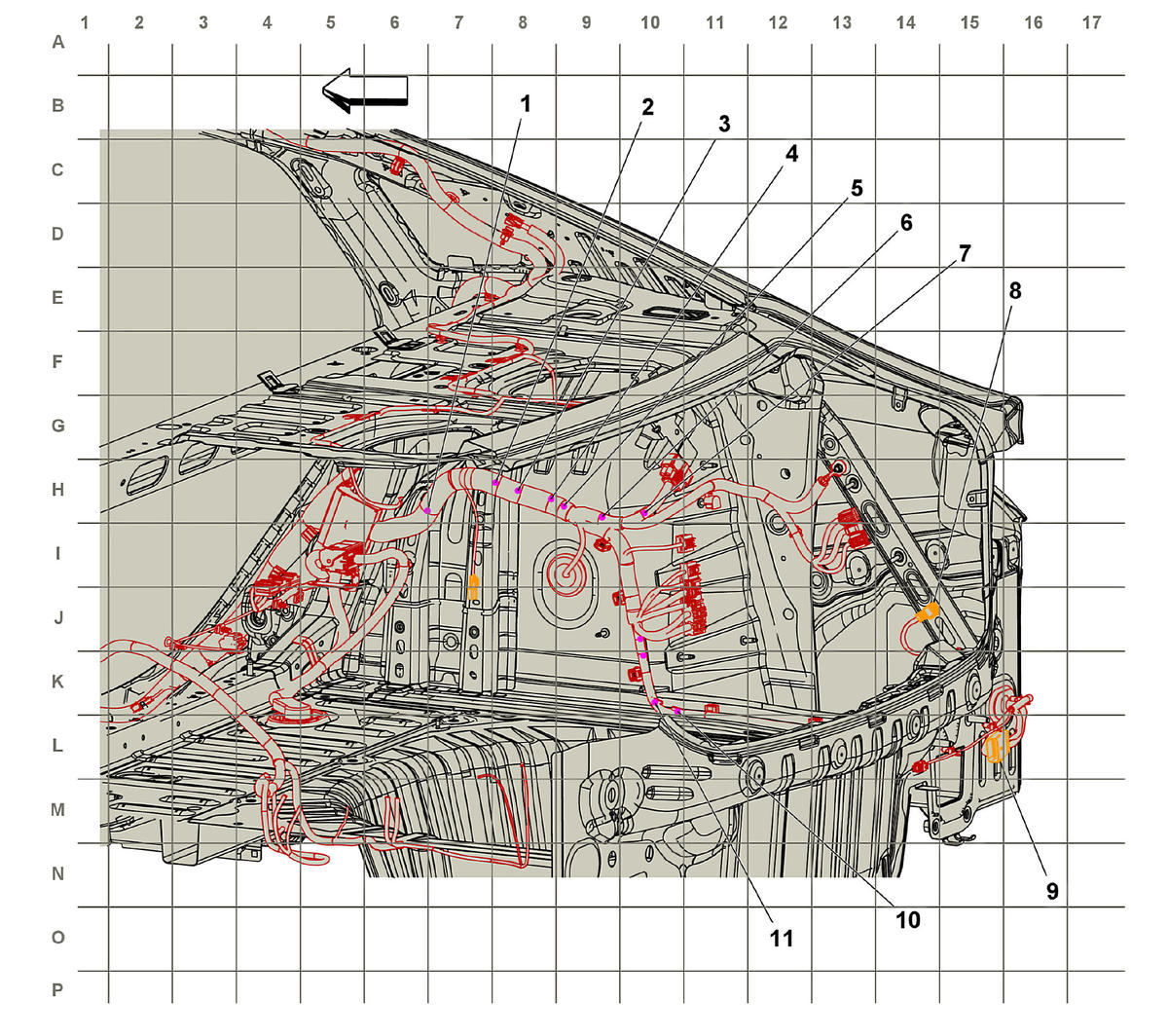

Body Harness Routing - Rear Compartment - Right Side
Body Harness Routing - Rear Compartment - Right Side
| Harness Name | Callout |
|---|---|
| J403 Body Harness | 1 |
| J404 Body Harness (J71) | 2 |
| J405 Body Harness (J71) | 3 |
| J406 Body Harness (J71) | 4 |
| J407 Body Harness (J71) | 5 |
| J410 Body Harness | 6 |
| J411 Body Harness | 7 |
| X420 Right Tail Lamp Harness to Body Harness X420 Right Tail Lamp Harness to Body Harness (-UGE) , or X420 Right Tail Lamp Harness to Body Harness (UGE) | 8 |
| X404 Rear Fascia Harness to Body Harness X404 Rear Fascia Harness to Body Harness | 9 |
| J413 Body Harness | 10 |
| J412 Body Harness | 11 |
